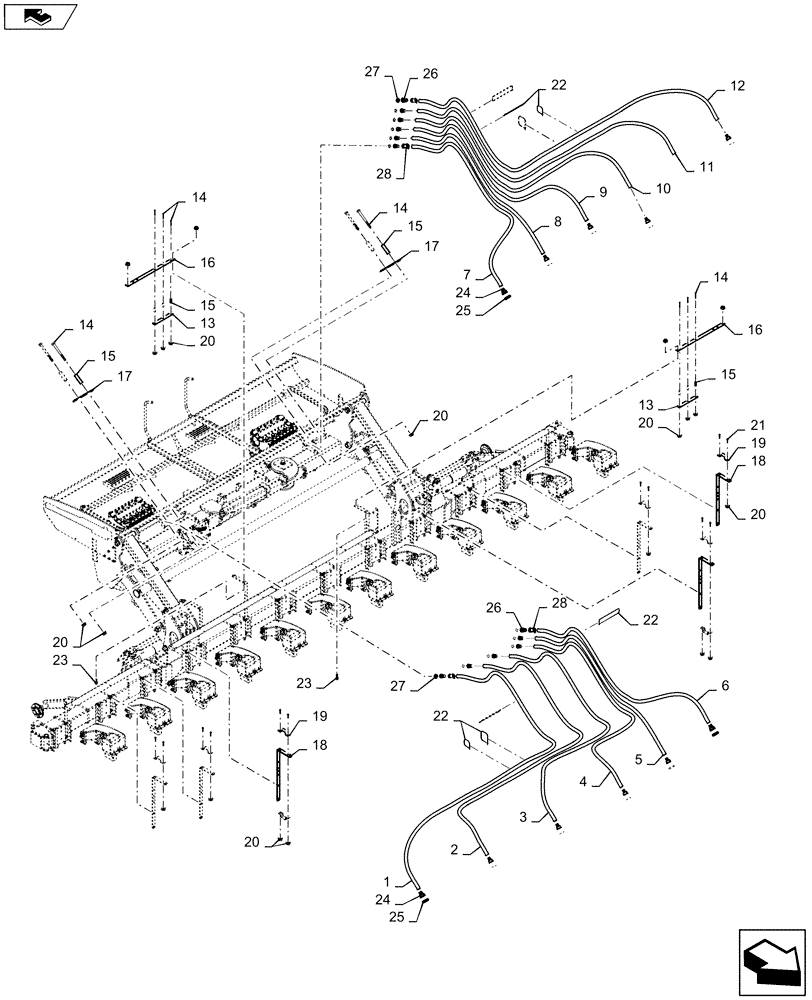

Запчасти Case IH 1245 (79.904.AA[06]) - BULK FILL AIR HOSES FOR 12/30 (79) - PLANTING

1

87483977

HOSE

100 Foot Bulk Hose 1.25" ID Cut To Length 5350mm

1шт.

2

87483977

HOSE

100 Foot Bulk Hose 1.25" ID Cut To Length 4830mm

1шт.

3

87483977

HOSE

100 Foot Bulk Hose 1.25" ID Cut To Length 4000mm

1шт.

4

87483977

HOSE

100 Foot Bulk Hose 1.25" ID Cut To Length 3450mm

1шт.

5

87483977

HOSE

100 Foot Bulk Hose 1.25" ID Cut To Length 2750mm

1шт.

6

87483977

HOSE

100 Foot Bulk Hose 1.25" ID Cut To Length 3075mm

1шт.

7

87483977

HOSE

100 Foot Bulk Hose 1.25" ID Cut To Length 3200mm

1шт.

8

87483977

HOSE

100 Foot Bulk Hose 1.25" ID Cut To Length 2750mm

1шт.

9

87483977

HOSE

100 Foot Bulk Hose 1.25" ID Cut To Length 3300mm

1шт.

10

87483977

HOSE

100 Foot Bulk Hose 1.25" ID Cut To Length 3900mm

1шт.

11

87483977

HOSE

100 Foot Bulk Hose 1.25" ID Cut To Length 4550mm

1шт.

12

87483977

HOSE

100 Foot Bulk Hose 1.25" ID Cut To Length 5200mm

1шт.

13

444186A1

SUPPORT TUBE

Bartube

2шт.

14

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

10шт.

15

47550843

BUSHING

Spacer

10шт.

16

444176A1

SUPPORT TUBE

Bartube

2шт.

17

440367A1

BAR

Seed Hoses

2шт.

18

427745A2

BAR

Support

6шт.

19

450972A1

BRACKET

Support Painted

8шт.

20

86624020

FLANGE NUT,Flg, 1/4"-20.G5

26шт.

21

84545653

FLANGE BOLT

1.4-20"

12шт.

22

291207C1

CLAMP

Cable Lock

8шт.

23

86544366

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

24

84329267

COUPLING

1.25" Seed Hose

12шт.

25

84372879

O-RING

Seed Hose Coupling

12шт.

26

84522897

COUPLING

Inductor 1.25" Hose

12шт.

27

47375185

O-RING

Inductor Coupling

16шт.

28

84534564

COVER

Cap

4шт.
