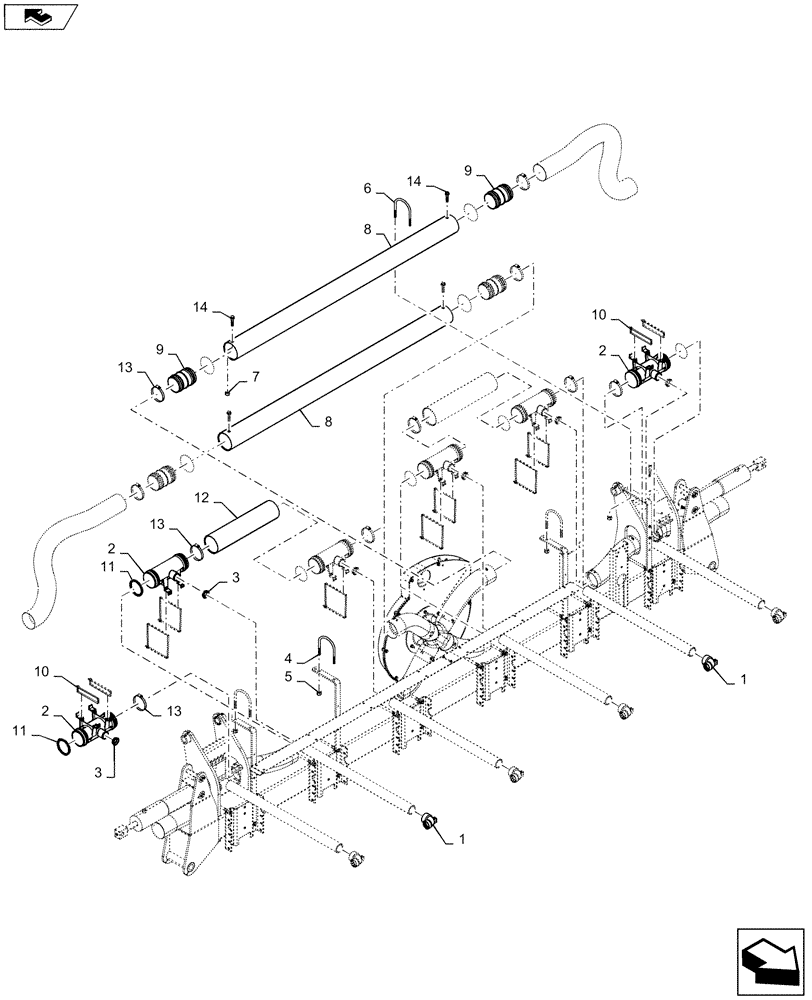

Запчасти Case IH 1245 (79.103.AA[09]) - VACUUM CONECTORS FOR 12/30 (79) - PLANTING

1

84416530

90 ELBOW

50 mm

12шт.

2

300766A1

TEE

Manifold

12шт.

3

305519A1

PLUG

Vacuum Manifold

6шт.

4

392969A1

U-BOLT

4шт.

5

86625061

NUT,1/4"-20, GB

12шт.

6

87427116

U-BOLT

House Routing

2шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

8

391886A1

TUBE,116.88 mm ID, 125 mm OD

2шт.

9

392979A1

FITTING

Manifold

4шт.

10

112620A1

CABLE TIE

34"

24шт.

11

47484434

O-RING

16шт.

12

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

4шт.

13

87023137

SELF-TAP SCREW,Hex Wash Hd, #12 x 1"

8шт.

14

87023137

SELF-TAP SCREW,Hex Wash Hd, #12 x 1"

4шт.
