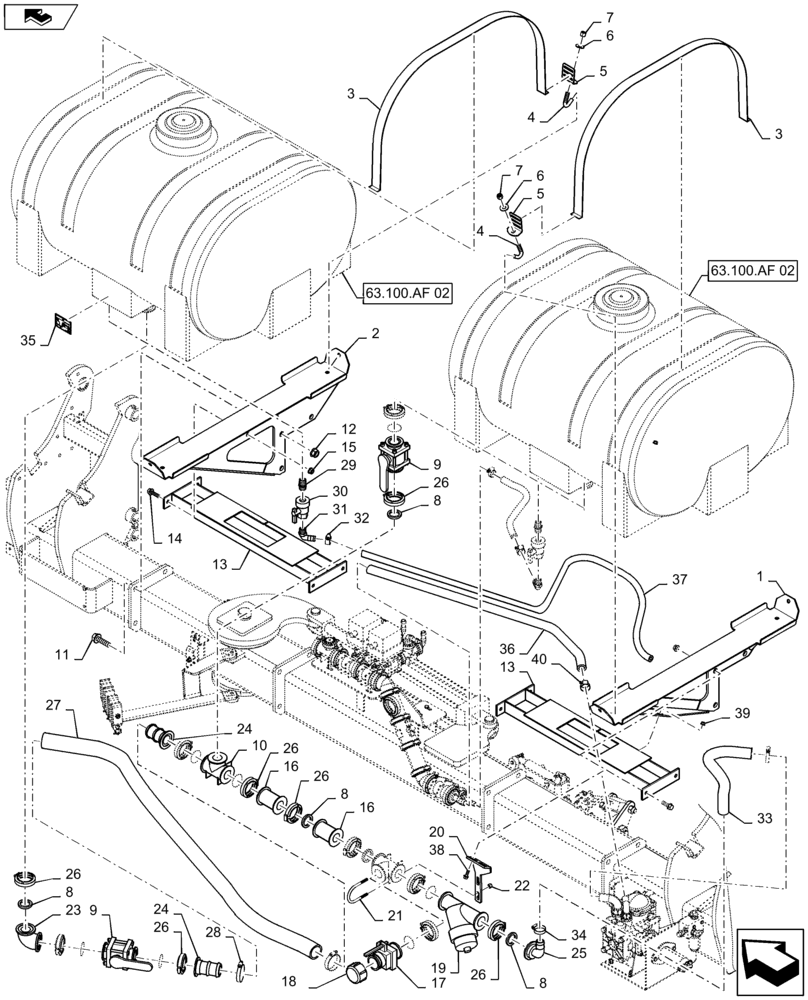

Запчасти Case IH 1245 (63.100.AF[01]) - LIQUID FERTILIZER BULK TANK SYSTEM FOR 12/30 (63) - CHEMICAL APPLICATORS

1

427785A2

BRACKET

Fertilizer Tank

2шт.

2

427783A2

BRACKET

Fertilizer Tank

2шт.

3

339403A1

STRAP

Tank

4шт.

4

441220A1

SPECIAL BOLT

1/2-13

8шт.

5

364318A1

ANCHOR

Strap

8шт.

6

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

7

87530607

NUT

1/2"

8шт.

8

408348A1

GASKET

1-1/2"

12шт.

9

405800A1

VALVE,2" Flange Ball Valve

2" With C-Flange

2шт.

10

405779A1

TEE,2" Port Flanged Tee

2" Manifold

2шт.

11

86637940

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

12шт.

12

84490435

FLANGE NUT

3/4"

12шт.

13

427787A1

SUPPORT

Connector 200 Gal Tank

2шт.

14

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

8шт.

15

86521607

FLANGE NUT,Flg, 1/2"-13, G5

8шт.

16

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

2" Manifold

2шт.

17

405801A1

VALVE,2" Flange x 2" Male Adapter

2" Male

1шт.

18

405799A1

DUST CAP,2" Cap w/Short Arms

2" Pipe

1шт.

19

405798A1

STRAINER ELEMENT,AAH

2"

1шт.

20

444324A2

BRACKET

Filter Support

1шт.

21

87413269

U-BOLT

3/8 X 2.87 X4

1шт.

22

86985855

LOCK NUT

3/8"

2шт.

23

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

90 Deg

1шт.

24

405780A1

FITTING,2" Flange x 2" Hose Barb

2шт.

25

405783A1

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2"

1шт.

26

406040A1

CLAMP,90-100 in/lbs

2"

12шт.

27

86988667

HOSE,2.00" ID x 100.00'

Bulk

1шт.

28

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

29

405788A1

NIPPLE,3/4" Short Poly Nipple

1" Nipple

2шт.

30

405795A1

SHUT-OFF VALVE,3/4" Single Union Poly Valve

3/4" Ball Check

2шт.

31

405778A1

ELBOW

3/4"

2шт.

32

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

#10

4шт.

33

86984447

HOSE,1.25" ID BULK x 100.00'

1шт.

34

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

35

47507174

CAUTION DECAL

Remove Tank Lid

2шт.

36

134329C3

HOSE

Bulk 1"

1шт.

37

241923A1

HOSE

Bulk 3/4"

2шт.

38

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

39

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

40

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.
