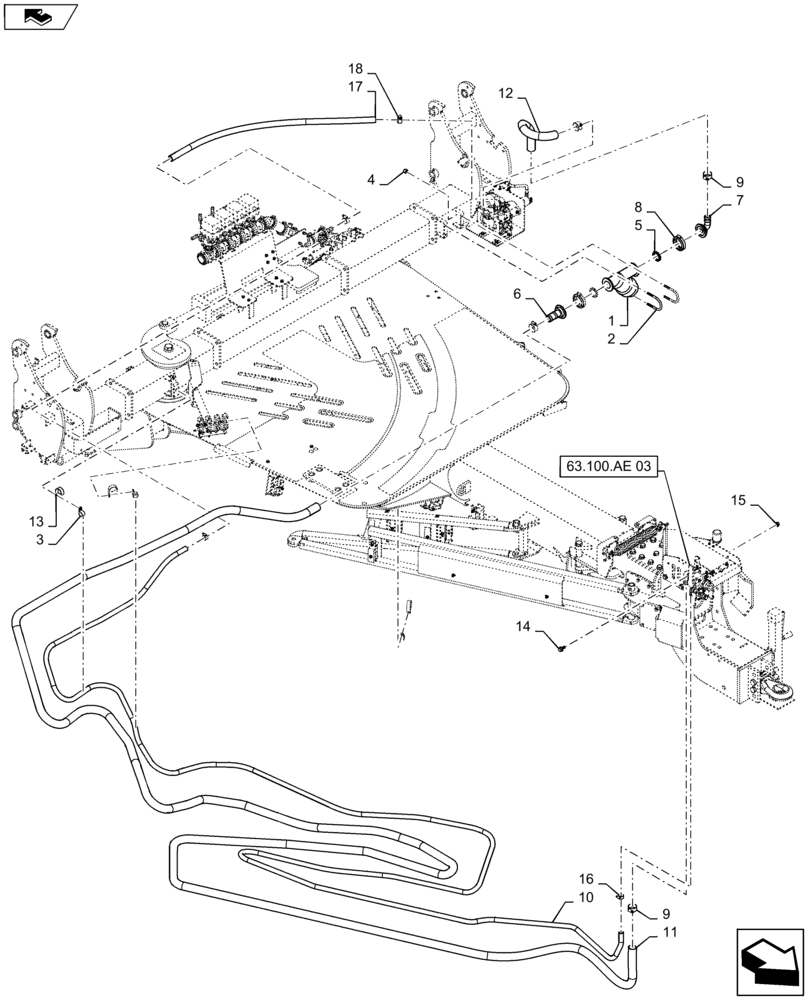

Запчасти Case IH 1245 (63.100.AE[02]) - LIQUID FERTILIZER SUPPLY HOSES FOR 12/30 30" SPLIT ROW 12/23 (63) - CHEMICAL APPLICATORS

1

405798A1

STRAINER ELEMENT,AAH

2" Manifold

1шт.

2

87413269

U-BOLT

3/8 X 2.87W X 4D

2шт.

3

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

4

86985855

LOCK NUT

3/8"

4шт.

5

408348A1

GASKET

1-1/2"

2шт.

6

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold 1-1/2"

1шт.

7

405783A1

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2" Manifold 1-1/4"

1шт.

8

406040A1

CLAMP,90-100 in/lbs

2"

2шт.

9

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

10

241923A1

HOSE

Bulk 100 Foot Roll Cut To Length 12497mm

1шт.

11

1264065C2

HOSE

Bulk 100 Foot Roll Cut To Length 13233mm

1шт.

12

86987903

HOSE

1.25" ID X 16.9"

1шт.

13

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

14

86533474

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

15

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

16

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

F#10

2шт.

17

134329C3

HOSE

Bulk Roll 50 Foot Cut To Length 1295mm

1шт.

18

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.
