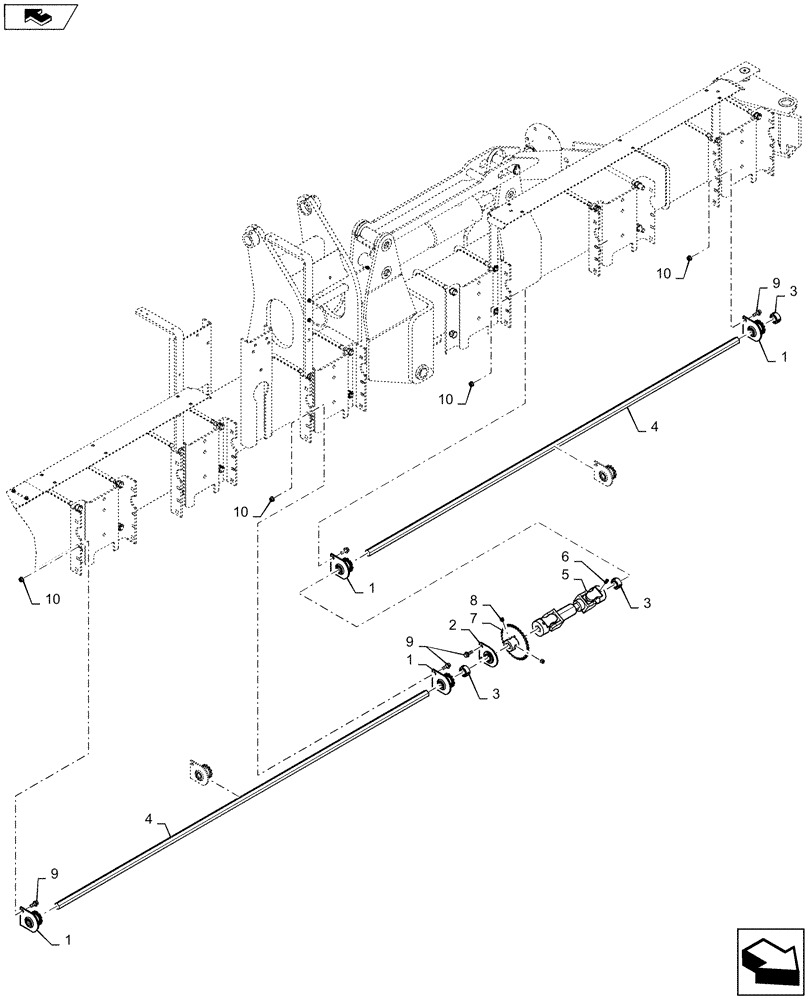

Запчасти Case IH 1245 (61.901.AF[04]) - METER DRIVE SHAFT FOR 12/30 (61) - METERING SYSTEM

1

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12 Tooth

1шт.

2

102724A2

BALL BEARING,22.6mm ID

.875 Hex Bore

1шт.

3

22224

COLLAR

Lock Stop

1шт.

4

84318444

DRIVE SHAFT

.875" X 1956 mm Hex

1шт.

5

87444140

DRIVE SHAFT

Coupling Telescoping

1шт.

6

87035712

SET SCREW,Hex Skt, 3/8" - 16 x 5/8"

2шт.

7

353037A1

SPROCKET

34 Tooth

1шт.

8

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

1шт.

9

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

10

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

14шт.
