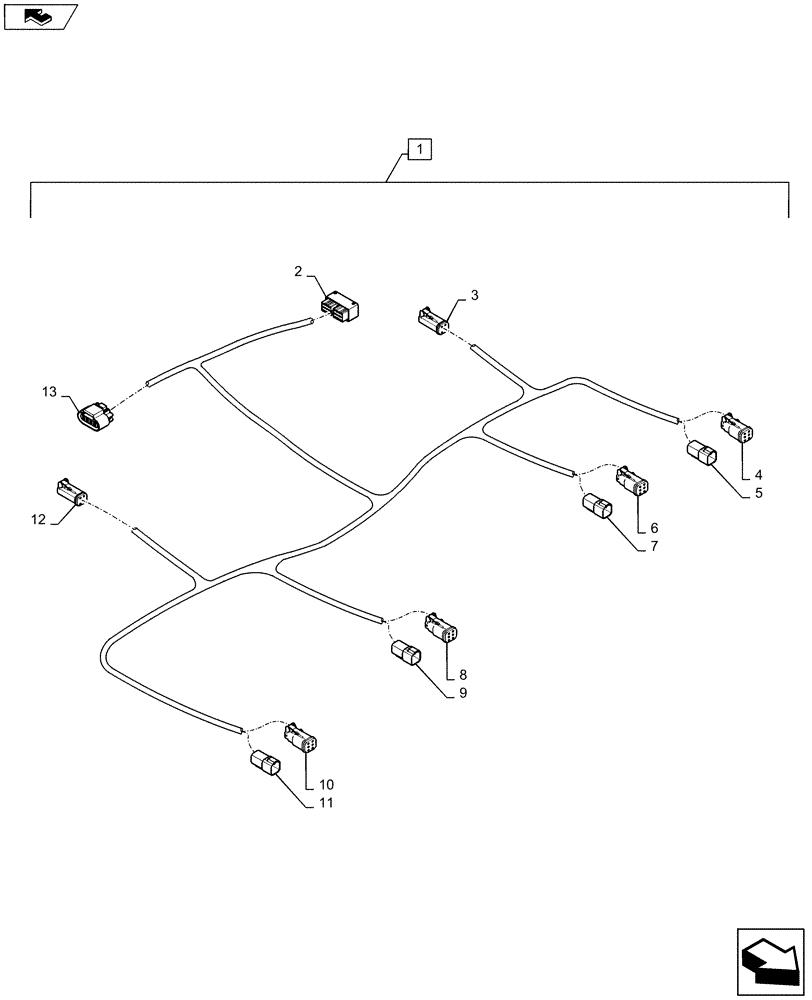

Запчасти Case IH 1235 (55.516.AE[01]) - HARNESS CABLE DRIVE ROW UNIT ELECTRIC CLUTCH CENTER FOR 8 ROW 38",40" (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case IH 1235 - (55.516.AE[01]) - HARNESS CABLE DRIVE ROW UNIT ELECTRIC CLUTCH CENTER FOR 8 ROW 38",40" (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5168140.png)
8
1
12
3
11
10
5
6
9
2
7
4
home
13
№
Артикул
Название
Примечание
Количество
1
84540233
HARNESS CABLE DRIVE ROW UNIT ELECTRIC CLUTCH Center For 8 Row 38",40" Incl 2 - 13
1шт.
2
84138326
ELEC CONNECTOR
30 Way Clutch ECU
1шт.
3
87694153
CONTACT HOUSING,Female, 4 Cavities
Right Wing Clutches
1шт.
4
87700107
ELEC CONNECTOR
Clutch And Seed 6
1шт.
5
87700106
ELEC CONNECTOR
Seed Sensor 6
1шт.
6
87700107
ELEC CONNECTOR
Clutch And Seed 5
1шт.
7
87700106
ELEC CONNECTOR
Seed Sensor 5
1шт.
8
87700107
ELEC CONNECTOR
Clutch And Seed 4
1шт.
9
87700106
ELEC CONNECTOR
Seed Sensor 4
1шт.
10
87700107
ELEC CONNECTOR
Clutch And Seed 3
1шт.
11
87700106
ELEC CONNECTOR
Seed Sensor 3
1шт.
12
87694153
CONTACT HOUSING,Female, 4 Cavities
Left Wing Clutches
1шт.
13
84137509
ELEC CONNECTOR
Clutch Option
1шт.
Выбрано товаров: 13
