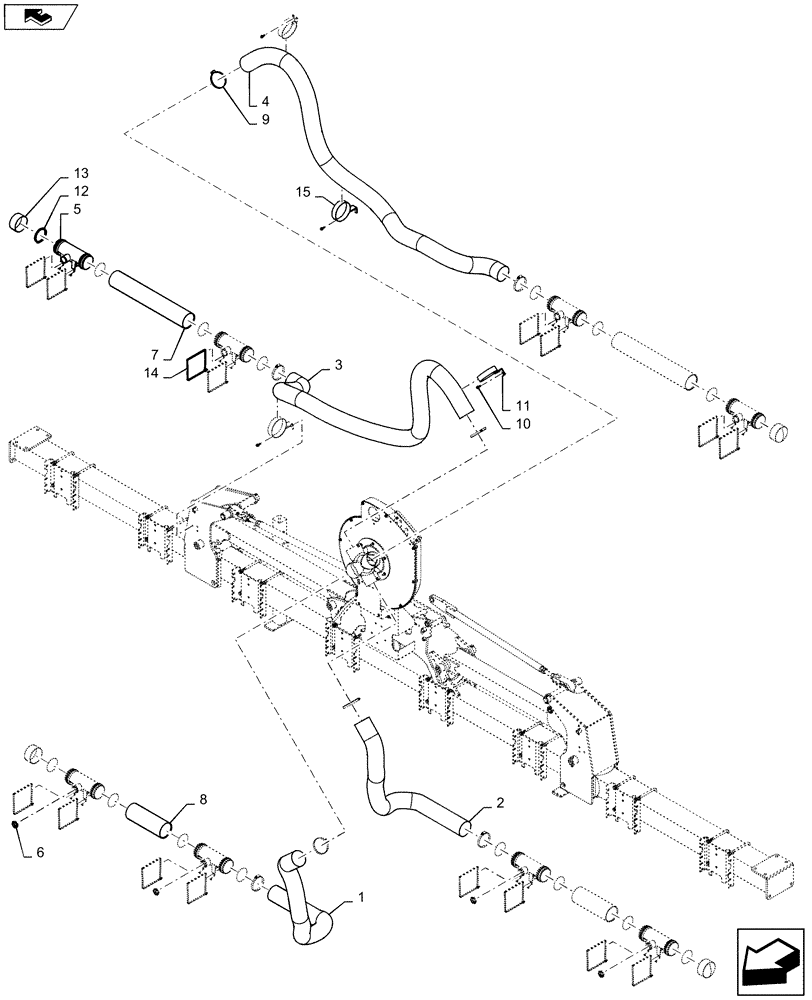

Запчасти Case IH 1235 (79.103.AA[01]) - VACUUM HOSE SYSTEM 8 ROW 38" (79) - PLANTING

1

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1730mm

1шт.

2

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1730mm

1шт.

3

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 3000mm

1шт.

4

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut Length 3000mm

1шт.

5

300766A1

TEE

Vacuum Manifold

8шт.

6

305519A1

PLUG

Manifold Restriction

4шт.

7

301442A1

TUBE,116.88 mm ID, 125 mm OD, 759 mm Length

2шт.

8

308014A1

TUBE,116.88 mm ID, 125 mm OD, 350 mm Length

2шт.

9

9706924

HOSE CLAMP,103.1mm - 127mm

8шт.

10

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

11

323214A1

GUIDE

4.5" Flex

2шт.

12

47484434

O-RING

4-1/4 X 4-5/8"

12шт.

13

300767A1

CAP

Manifold End

4шт.

14

112620A1

CABLE TIE

34"

16шт.

15

87573434

HOLDER

Vacuum Hose

2шт.
