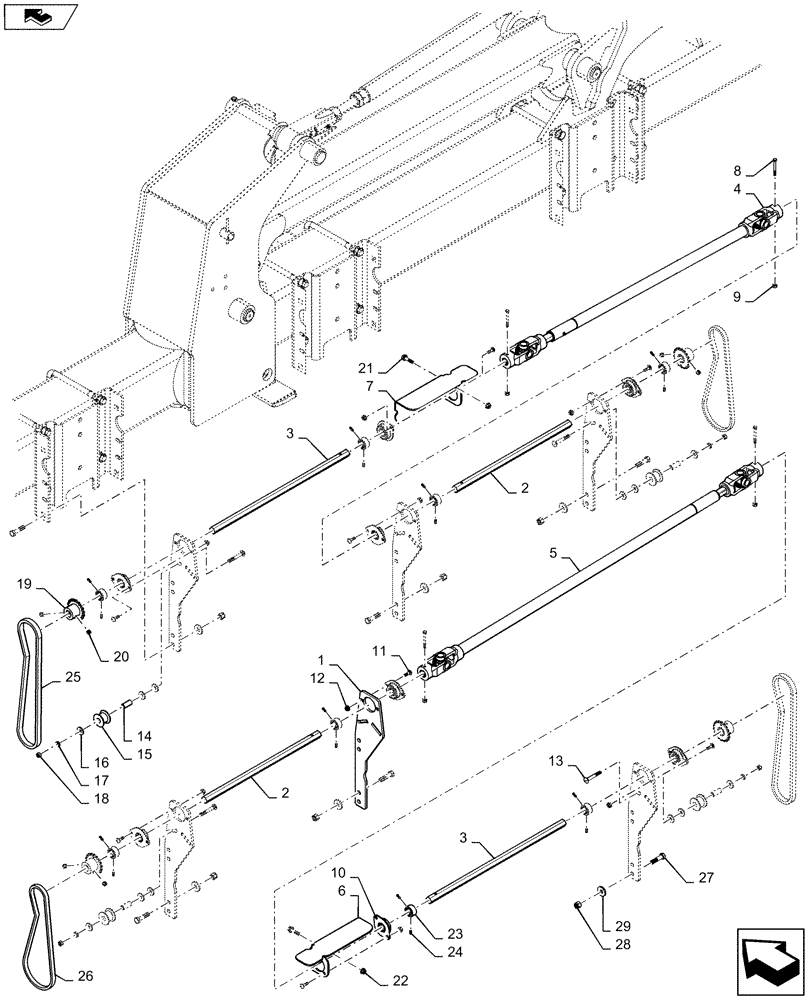

Запчасти Case IH 1235 (61.901.AB[04]) - MECHANICAL DRIVELINE FOR 8 ROW 38",40" (61) - METERING SYSTEM

1

87648811

BRACKET

Driveline Support

6шт.

2

87492001

CROSS SHAFT

7/8 " Hex 495 mm

2шт.

3

87690805

SHAFT

22 mm X 900 mm

2шт.

4

87739820

DRIVE SHAFT

Left Painted

1шт.

5

87739820

DRIVE SHAFT

Right Painted

1шт.

6

87675620

BRACKET

Driveline Wings Right Painted

1шт.

7

87675621

BRACKET

Driveline Wings Left Painted

1шт.

8

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

4шт.

9

87034810

NUT,1/4"-20, GA

4шт.

10

134158C92

BALL BEARING,22.5mm ID

8шт.

11

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

16шт.

12

145458

SERRATED NUT,5/16"-18 GR 5 ZND

16шт.

13

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

4шт.

14

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

Chain Idler

4шт.

15

1277726C1

ROLLER,48mm OD x 34mm L

Idler

4шт.

16

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

18

9628503

NUT,3/8"-16, G5

4шт.

19

103681A1

SPROCKET

4шт.

20

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

21

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

6шт.

22

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

23

22224

COLLAR

Lock

8шт.

24

84523394

KEYWAY

Set Screw

16шт.

25

84485911

CHAIN

40-1 74 Links

2шт.

26

84485912

CHAIN

40-1 68 Links

2шт.

27

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

28

9636698

NUT,1/2"-13, GB

12шт.

29

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

12шт.
