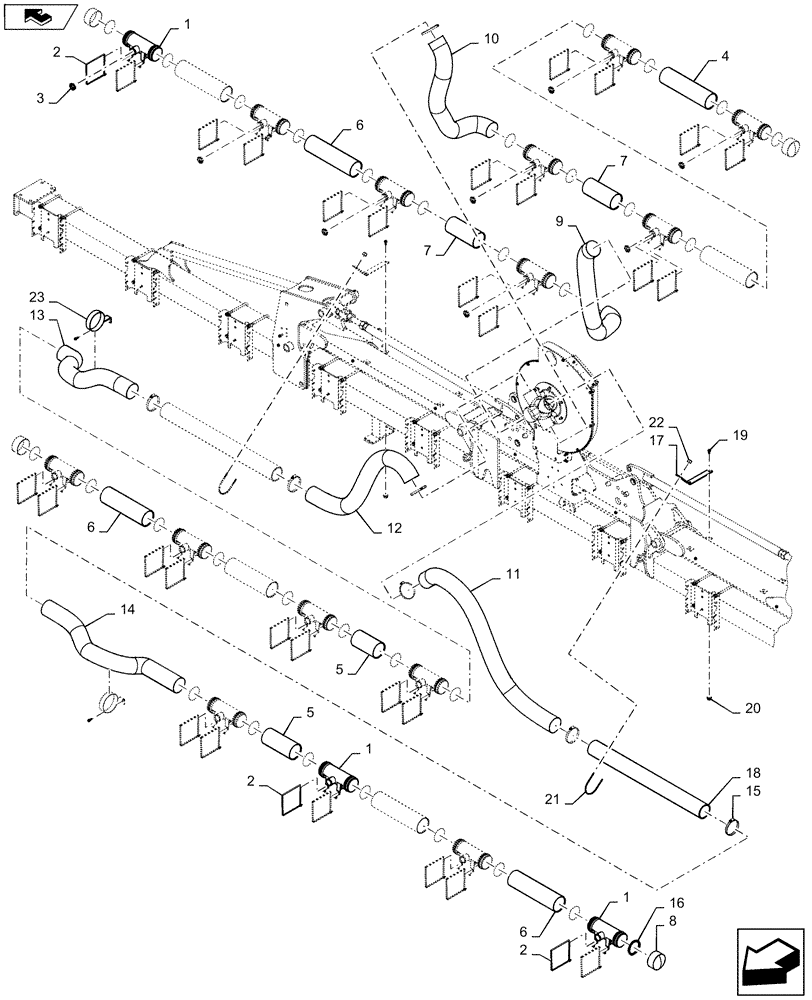

Запчасти Case IH 1235 (79.103.AA[07]) - VACUUM HOSE SYSTEM 16 ROW 30" (79) - PLANTING

1

300766A1

TEE

Vacuum Manifold

16шт.

2

112620A1

CABLE TIE

34"

32шт.

3

305519A1

PLUG

Manifold Restriction

8шт.

4

84364347

TUBE

Vacuum Manifold 575 mm

2шт.

5

84364342

TUBE

Vacuum Manifold 230 mm

2шт.

6

84364346

TUBE

Vacuum Manifold 565 mm

6шт.

7

308014A1

TUBE,116.88 mm ID, 125 mm OD, 350 mm Length

Vacuum Manifold 350 mm

2шт.

8

300767A1

CAP

Manifold End

4шт.

9

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1730 mm

1шт.

10

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1730 mm

1шт.

11

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1570 mm

1шт.

12

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1570 mm

1шт.

13

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1570 mm

1шт.

14

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1570 mm

1шт.

15

9706924

HOSE CLAMP,103.1mm - 127mm

12шт.

16

47484434

O-RING

4- 1/4 X 4-5/8"

28шт.

17

84145361

BRACKET

Hose Holder Painted

4шт.

18

84143327

PIPE

4.5" X 1400 mm

2шт.

19

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

20

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

21

392969A1

U-BOLT

Vacuum System

4шт.

22

86625061

NUT,1/4"-20, GB

8шт.

23

87573434

HOLDER

Vacuum Hose

2шт.
