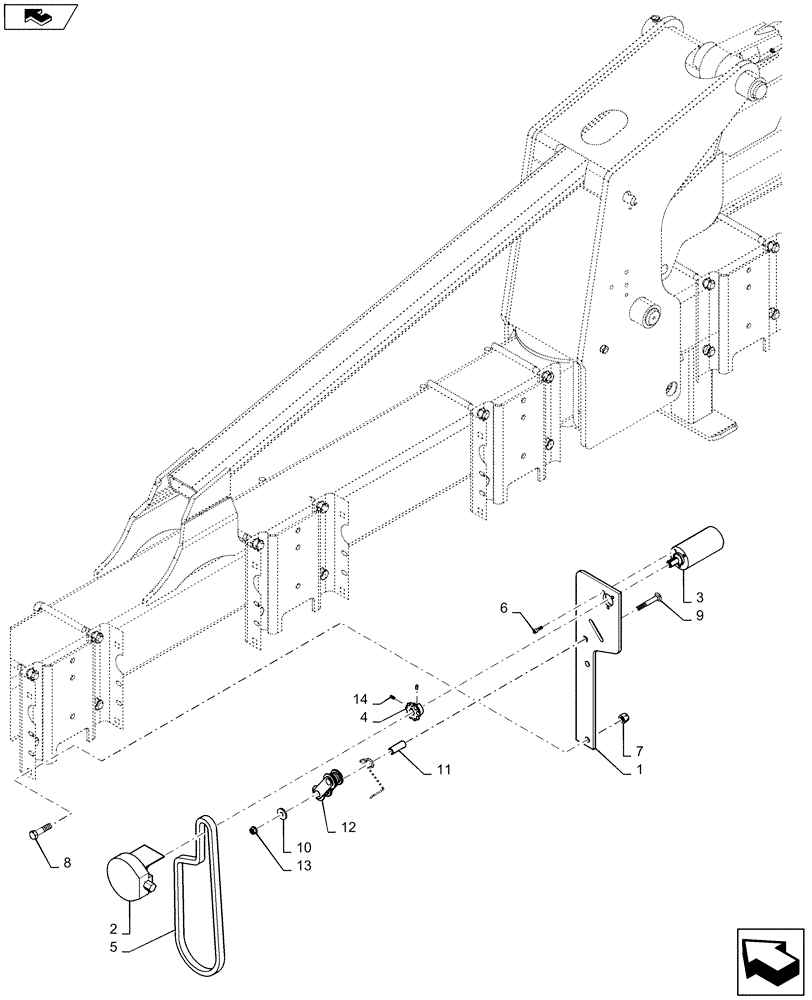

Запчасти Case IH 1235 (61.901.AB[13]) - HYDRAULIC DRIVELINE CROSS OVER FOR 16 ROW 30" (61) - METERING SYSTEM

1

436716A2

BRACKET

Seed Drive Motor

3шт.

2

296164A2

SENSOR

Application Rate

3шт.

3

293288A1

MOTOR

Meter Drive

3шт.

3

293288A1R

REMAN-HYD MOTOR

Meter Drive

3шт.

3

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

3шт.

4

84551195

SPROCKET

10 Tooth

3шт.

5

84387534

CHAIN

Seed Drive

3шт.

6

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

9шт.

7

9636698

NUT,1/2"-13, GB

6шт.

8

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6шт.

9

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

6шт.

10

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

18шт.

11

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

Chain Idler

6шт.

12

1277726C1

ROLLER,48mm OD x 34mm L

Idler

6шт.

13

9628503

NUT,3/8"-16, G5

6шт.

14

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

6шт.
