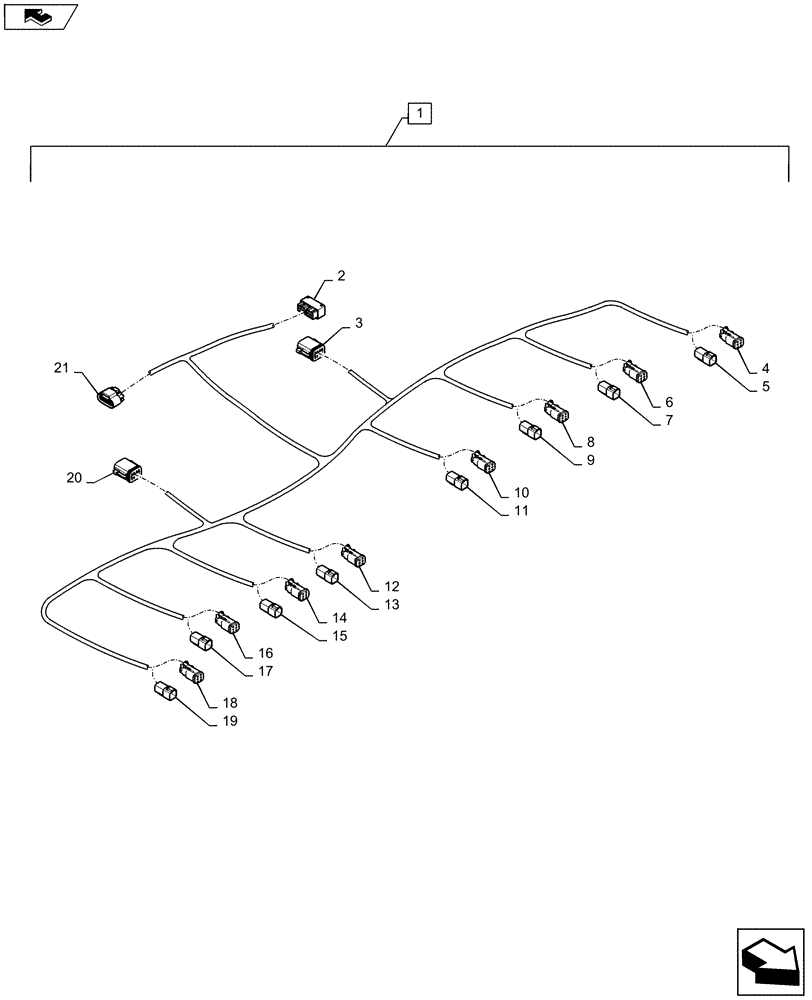

Запчасти Case IH 1235 (55.516.AE[07]) - HARNESS CABLE DRIVE ROW UNIT ELECTRIC CLUTCH CENTER FOR 16 ROW 30" (55) - ELECTRICAL SYSTEMS

1

84540209

WIRE HARNESS

HARNESS CABLE DRIVE ROW UNIT ELECTRIC CLUTCH CENTER FOR 16 Row 30" Incl 2 - 21

1шт.

2

84138326

ELEC CONNECTOR

Clutch ECU

1шт.

3

87700325

ELEC CONNECTOR,Female, 8 Cavities

Rght Wing Clutches

1шт.

4

87700107

ELEC CONNECTOR

Clutch And Seed Row 12

1шт.

5

87700106

ELEC CONNECTOR

Seed Sensor Row 12

1шт.

6

87700107

ELEC CONNECTOR

Clutch And Seed Row 11

1шт.

7

87700106

ELEC CONNECTOR

Seed Sensor Row 11

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 10

1шт.

9

87700106

ELEC CONNECTOR

Seed Sensor Row 10

1шт.

10

87700107

ELEC CONNECTOR

Clutch And Seed Row 9

1шт.

11

87700106

ELEC CONNECTOR

Seed Sensor Row 9

1шт.

12

87700107

ELEC CONNECTOR

Clutch And Seed Row 8

1шт.

13

87700106

ELEC CONNECTOR

Seed Sensor Row 8

1шт.

14

87700107

ELEC CONNECTOR

Clutch And Seed Sensor Row 7

1шт.

15

87700106

ELEC CONNECTOR

Seed Sensor Row 7

1шт.

16

87700107

ELEC CONNECTOR

Clutch And Seed Row 6

1шт.

17

87700106

ELEC CONNECTOR

Seed Sensor Row 6

1шт.

18

87700107

ELEC CONNECTOR

Clutch And Seed Row 5

1шт.

19

87700107

ELEC CONNECTOR

Seed Sensor Row 5

1шт.

20

87700325

ELEC CONNECTOR,Female, 8 Cavities

Left Wing Clutches

1шт.

21

84137509

ELEC CONNECTOR

Clutch Option

1шт.
