(55.100.AI[09]) - SEED SENSOR WIRE HARNESS WING FOR 16 ROW 30"

Запчасти Case IH 1235 (55.100.AI[09]) - SEED SENSOR WIRE HARNESS WING FOR 16 ROW 30" (55) - ELECTRICAL SYSTEMS

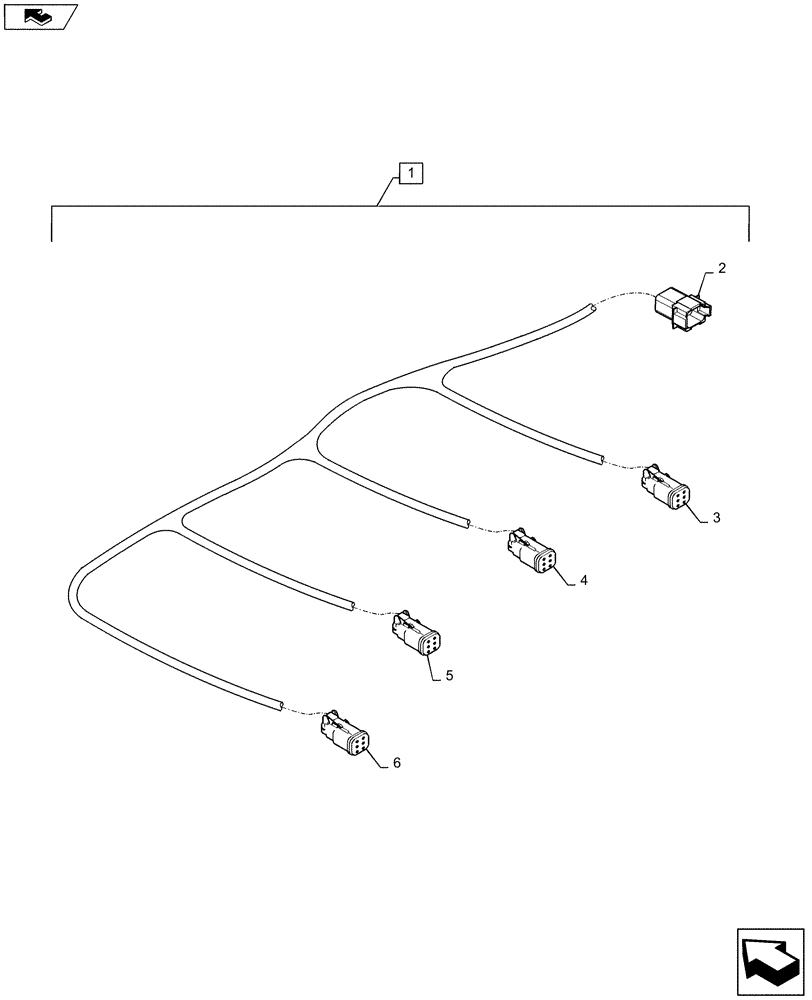

Схема запчастей Case IH 1235 - (55.100.AI[09]) - SEED SENSOR WIRE HARNESS WING FOR 16 ROW 30" (55) - ELECTRICAL SYSTEMS
1
6
2
home
3
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84539993

WIRE HARNESS

Seed Sendor Wing 16 Row 30" Incl 2 - 6

1шт.

2

87700331

Seed Sensor

1шт.

3

87700107

ELEC CONNECTOR

Seed Sensor Row 4 Or 16

1шт.

4

87700107

ELEC CONNECTOR

Seed Sensor Row 3 Or 14

1шт.

5

87700107

ELEC CONNECTOR

Seed Sensor Row 2 Or 15

1шт.

6

87700107

ELEC CONNECTOR

Seed Sensor Row 1 Or 16

1шт.
