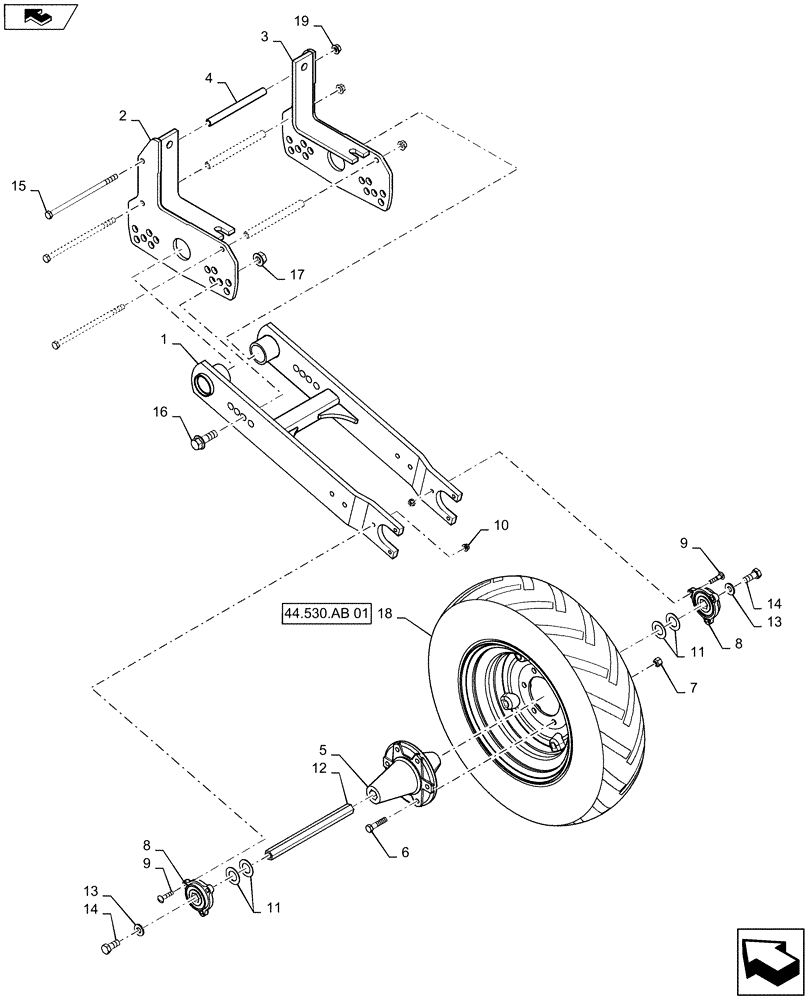

Запчасти Case IH 1235 (44.530.AC[02]) - CARRIER WHEEL MOUNTING FOR 16 ROW (44) - WHEELS

1

87565531

FRAME

Rail Dual Arm Wheel

1шт.

2

87565526

BRACKET

Left Wheel Mount

1шт.

3

87565528

BRACKET

Right Wheel Mount

1шт.

4

87548228

SPACER

Wheel Mount

3шт.

5

293985A2

HUB

Wheel

1шт.

6

86622972

BOLT,Spcl, Hex, 1/2" - 20 x 2 1/4", Gr 8, Full Thd

6шт.

7

F23214

WHEEL NUT

1/2"-20

6шт.

8

233254A1

BEARING ASSY,25.55mm ID

2шт.

9

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

6шт.

10

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

11

86624175

WASHER,1.16" ID x 2" OD x 0.06" Thk

4шт.

12

293986A1

BAR

Axle Wheel

1шт.

13

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

2шт.

14

86622997

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

2шт.

15

84183814

BOLT

.500 X 10.0 "

3шт.

16

84490436

FLANGE BOLT

3/4 X 2.25"

2шт.

17

84490435

FLANGE NUT

3/4"

2шт.

18

332455A2

WHEEL ASSY

Tire

1шт.

19

86521607

FLANGE NUT,Flg, 1/2"-13, G5

3шт.
