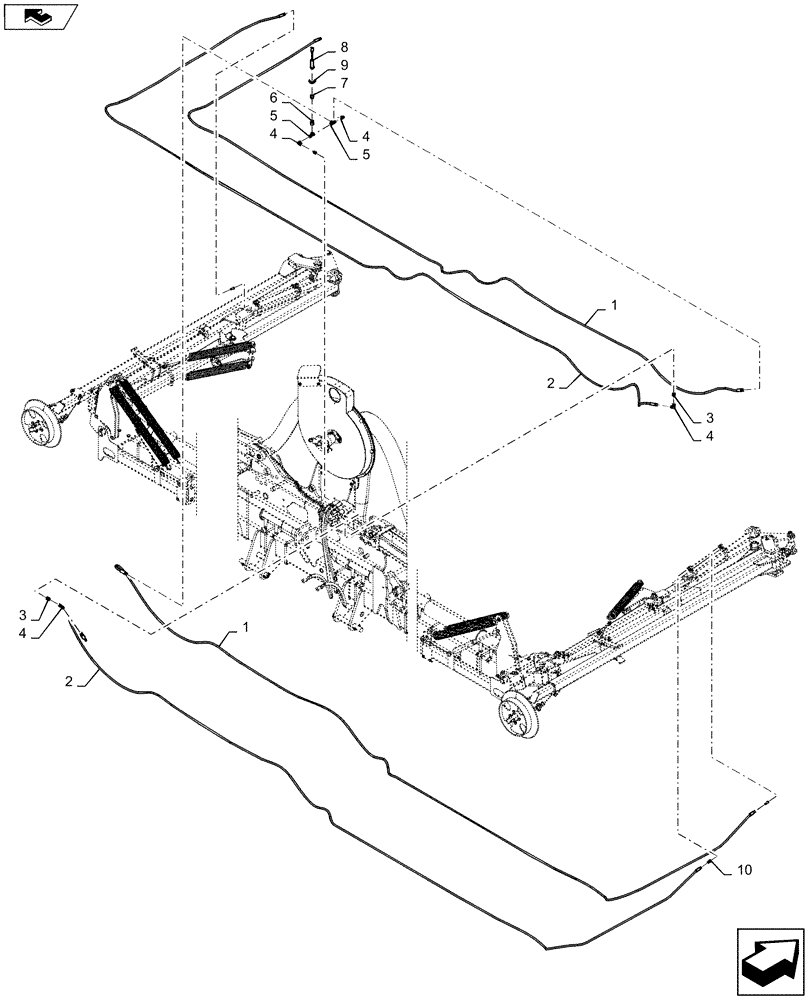

Запчасти Case IH 1235 (35.911.AP[02]) - MARKER HYDRAULIC LINES FOR 12 ROW 36",38"40", AND 16 ROW 30" (35) - HYDRAULIC SYSTEMS

1

47551514

HYDRAULIC HOSE

6.4 mm X 8050 mm

2шт.

2

47519021

HYDRAULIC HOSE

6.4 mm X 8385 mm

2шт.

3

382996A1

ORIFICE

One Way

3шт.

4

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

4шт.

5

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

6

86624010

HYD CONNECTOR,37 Degree, Sw, 9/16"-18" x 3/8"-18 NPTF

1шт.

7

47556789

ADAPTER

3/8"

1шт.

8

1547188C1

SWITCH

Pressure 1900 PSI

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

86513049

PLUG,9/16" - 18 JIC

4шт.
