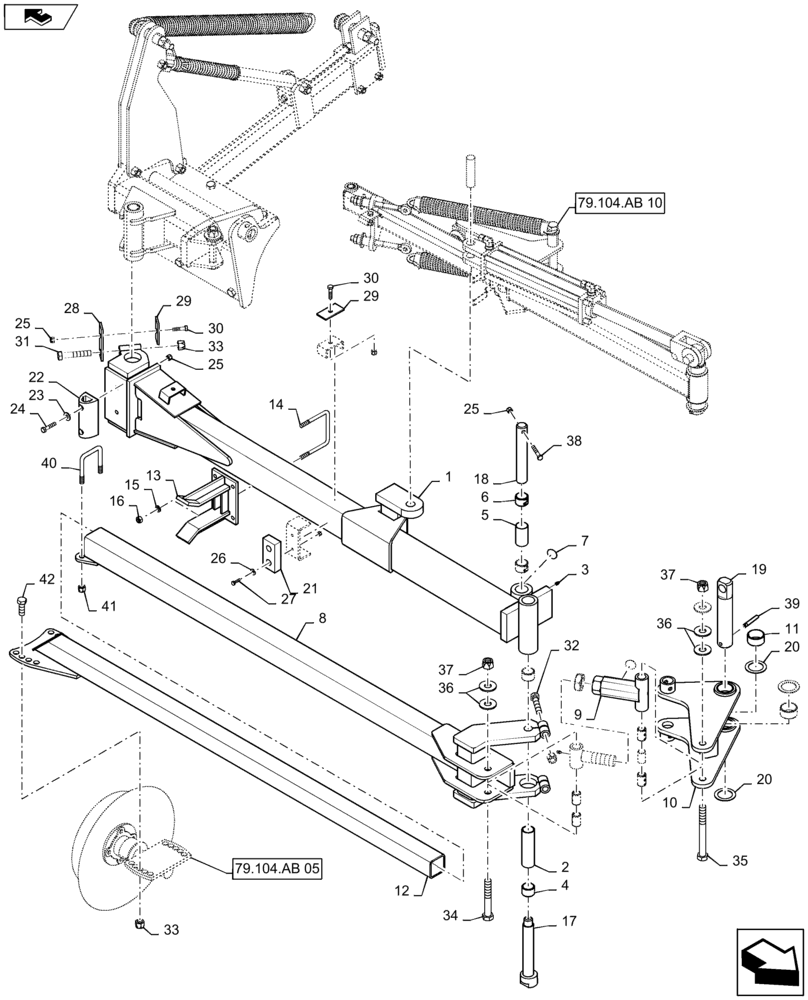

Запчасти Case IH 1235 (79.104.AB[11]) - MARKER ARM OUTER LEFT FOR 12 ROW 36",38"40" AND 16 ROW 30" (79) - PLANTING

1

87628423

ARM

40 Foot Marker Inner Painted

1шт.

2

NN-361

SPACER

Plastic

1шт.

3

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

4

6636

BUSHING

1.5 X 1.25 X 1"

2шт.

5

TM-115

SPACER

Tube

1шт.

6

87505190

BUSHING

1.5 X 1.25 X 1"

2шт.

7

6566

DECAL

Grease 50 Hours

3шт.

8

87628426

ARM

40 Foot Marker Outer Painted

1шт.

9

TM-151A

LINK

Lever

1шт.

10

87628408

LINK

Lug

1шт.

11

6637

BUSHING

2 X 1.75 X 1"

4шт.

12

87636047

ARM

Marker Adjust Painted

1шт.

13

87636048

CRADLE

Outer Boom

1шт.

14

8598

U-BOLT

2шт.

15

81547

LOCK WASHER,7/16"

4шт.

16

84951

NUT,7/16"-14, G2

4шт.

17

87661322

PIN

Offset

2шт.

18

TM-111

PIVOT PIN

Link

1шт.

19

87660736

PIN

Cylinder

1шт.

20

87325446

WASHER,1.75" ID x 2.5" OD x 0.07" Thk

1.750 X 2.500 X .075"

3шт.

21

CA-250

PAD

Stop

1шт.

22

23264

PAD

Bumper

1шт.

23

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

24

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

25

9637692

NUT,3/8"-16, Gr B

6шт.

26

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

2шт.

27

88146

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

28

87690973

BOSS

Tab

1шт.

29

427779A1

CLAMP

Hose

3шт.

30

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

31

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

32

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

33

19670

NUT,5/8"-11, GB

6шт.

34

88421

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

35

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

1шт.

36

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

7шт.

37

9626598

NUT,3/4"-10, GB

4шт.

38

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

39

87635861

ROLL PIN

.375 X 2.500"

1шт.

40

2913

U-BOLT

1шт.

41

9636698

NUT,1/2"-13, GB

2шт.

42

9627896

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.
