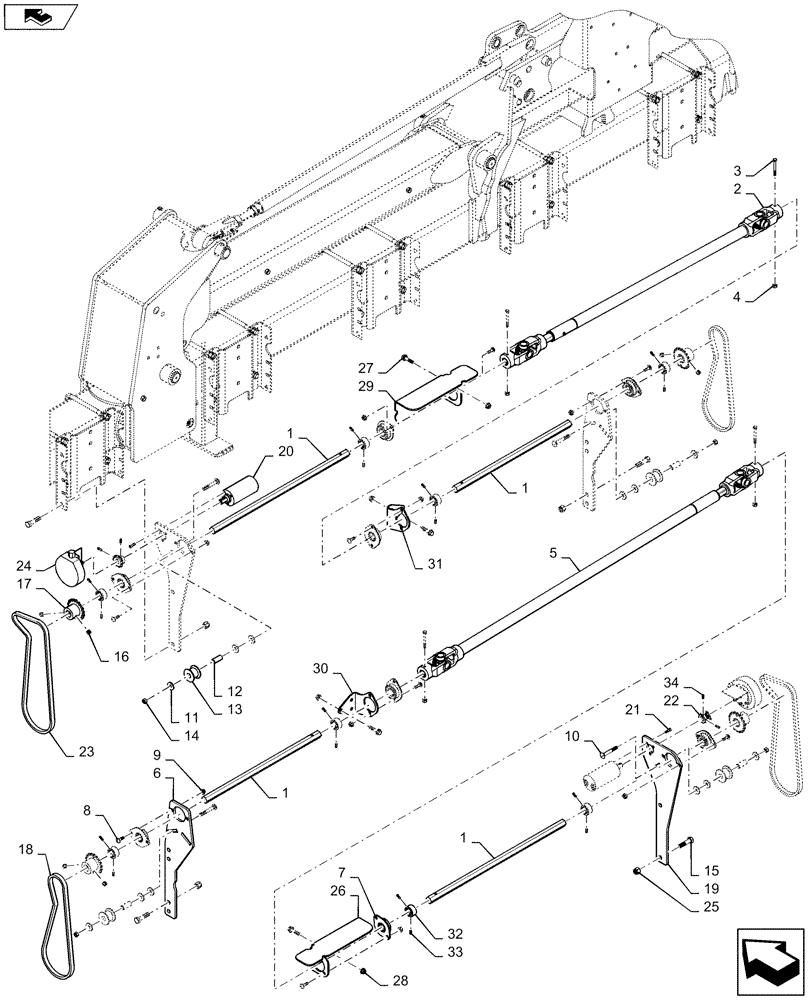

Запчасти Case IH 1235 (61.901.AB[12]) - HYDRAULIC DRIVELINE CROSS OVER FOR 12 ROW 40" (61) - METERING SYSTEM

1

87690804

SHAFT

7/8' X 800 mm

4шт.

2

87739825

DRIVE SHAFT

12 Row Painted

1шт.

3

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

4шт.

4

87034810

NUT,1/4"-20, GA

4шт.

5

87739825

DRIVE SHAFT

Driveshaft 12 Row Painted

1шт.

6

87648811

BRACKET

Driveline Support

2шт.

7

134158C92

BALL BEARING,22.5mm ID

8шт.

8

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

16шт.

9

145458

SERRATED NUT,5/16"-18 GR 5 ZND

16шт.

10

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

4шт.

11

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

12

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

Chain Drive

4шт.

13

1277726C1

ROLLER,48mm OD x 34mm L

Idler

4шт.

14

9628503

NUT,3/8"-16, G5

4шт.

15

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

16

103681A1

SPROCKET

18 Tooth

4шт.

17

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

18

84485910

CHAIN

40-1 X 77 Links

2шт.

19

87675628

BRACKET

Driveline Support

2шт.

20

293288A1

MOTOR

Meter Drive

2шт.

20

293288A1R

REMAN-HYD MOTOR

Meter Drive

2шт.

20

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

21

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

6шт.

22

84551195

SPROCKET

10 Tooth

2шт.

23

84485909

CHAIN

40-1 X 91 Links

2шт.

24

296164A2

SENSOR

Rate Sensor

2шт.

25

9636698

NUT,1/2"-13, GB

8шт.

26

87675620

BRACKET

Driveline Wing Right Painted

1шт.

27

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

12шт.

28

247780

SERRATED NUT,Flg, USR, 3/8"-16

12шт.

29

87675621

BRACKET

Driveline Wing Left Painted

1шт.

30

87675622

BRACKET

Wing Support Right Painted

1шт.

31

87675623

BRACKET

Wing Support Left Painted

1шт.

32

22224

COLLAR

Lock

8шт.

33

84580735

SET SCREW

16шт.

34

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

4шт.
