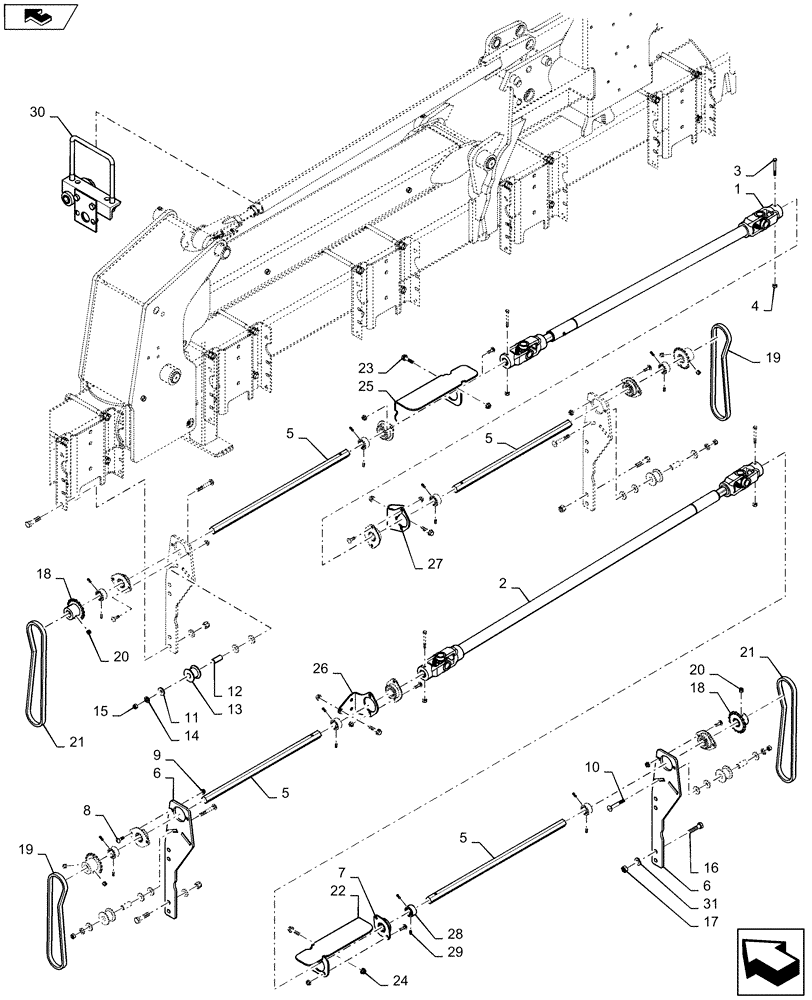

Запчасти Case IH 1235 (61.901.AB[07]) - MECHANICAL DRIVELINE FOR 12 ROW 40" (61) - METERING SYSTEM

1

87739825

DRIVE SHAFT

12R-16R Painted Left

1шт.

2

87739825

DRIVE SHAFT

12R-16R Painted Right

1шт.

3

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

4шт.

4

87034810

NUT,1/4"-20, GA

4шт.

5

87690804

SHAFT

7/8" Hex X 800 mm

4шт.

6

87648811

BRACKET

Drivleine Support

4шт.

7

134158C92

BALL BEARING,22.5mm ID

8шт.

8

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

16шт.

9

145458

SERRATED NUT,5/16"-18 GR 5 ZND

16шт.

10

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

4шт.

11

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

12

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

Bushing Chain Idler

4шт.

13

1277726C1

ROLLER,48mm OD x 34mm L

Idler

4шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

15

9628503

NUT,3/8"-16, G5

4шт.

16

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

17

9636698

NUT,1/2"-13, GB

8шт.

18

103681A1

SPROCKET

40- 18 Tooth

4шт.

19

84485912

CHAIN

40-1 X 68 Links

2шт.

20

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

21

84485911

CHAIN

40-1 X 74 Links

2шт.

22

87675620

BRACKET

Driveline Wings Right Painted

1шт.

23

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

12шт.

24

247780

SERRATED NUT,Flg, USR, 3/8"-16

12шт.

25

87675621

BRACKET

Driveline Wings Left Painted

1шт.

26

87675622

BRACKET

Wing Support Right Painted

1шт.

27

87675623

BRACKET

Wing Support Left Painted

1шт.

28

22224

COLLAR

Lock

8шт.

29

84523394

KEYWAY

Set Screw

16шт.

30

84260093

Haning Bearing

1шт.

31

86632589

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

8шт.
