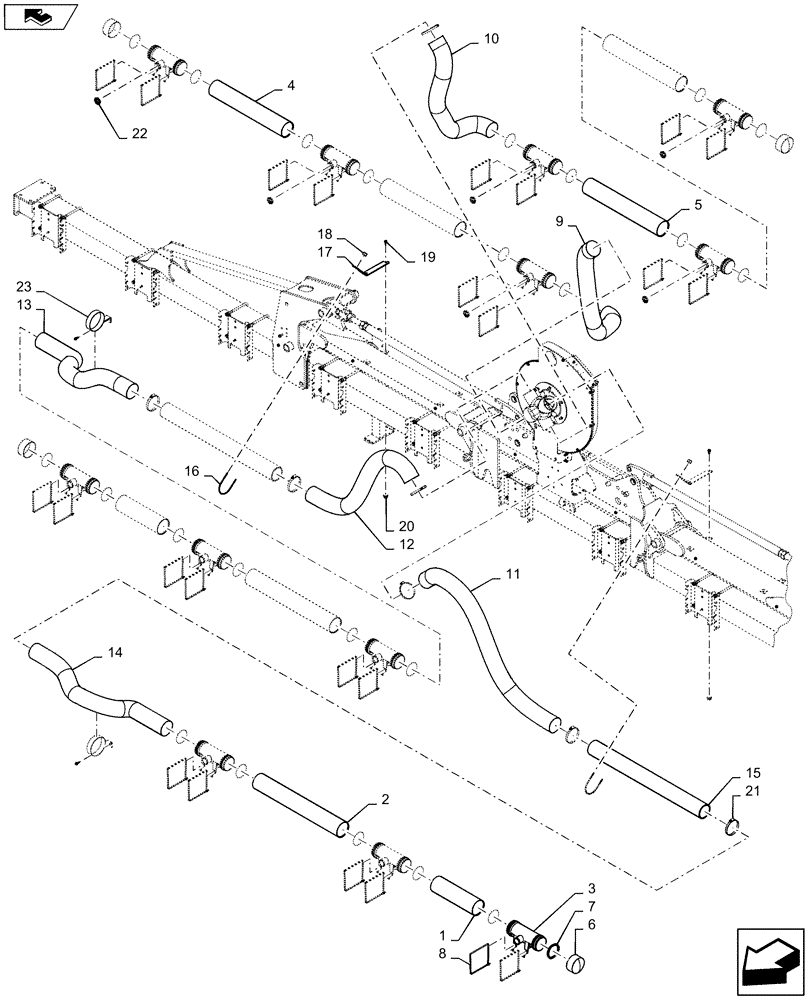

Запчасти Case IH 1235 (79.103.AA[05]) - VACUUM HOSE SYSTEM 12 ROW 38" (79) - PLANTING

1

84364344

TUBE

Manifold 430 mm

2шт.

2

84364351

TUBE

Manifold 870 mm

2шт.

3

300766A1

TEE

Vacuum Manifold

12шт.

4

84364349

TUBE

Vacuum Manifold 750 mm

2шт.

5

84364350

TUBE

Vacuum Manifold 770 mm

2шт.

6

300767A1

CAP

Manifold End

4шт.

7

47484434

O-RING

4-1/4 X 4-5/8"

20шт.

8

112620A1

CABLE TIE

34"

24шт.

9

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1620 mm

1шт.

10

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1620 mm

1шт.

11

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1620 mm

1шт.

12

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1620 mm

1шт.

13

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1730 mm

1шт.

14

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1730 mm

1шт.

15

84144826

PIPE

Vacuum 4.5" X 1150 mm

2шт.

16

392969A1

U-BOLT

Vacuum

4шт.

17

84145361

BRACKET

Vacuum Hose Painted

4шт.

18

86625061

NUT,1/4"-20, GB

8шт.

19

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

20

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

21

9706924

HOSE CLAMP,103.1mm - 127mm

12шт.

22

305519A1

PLUG

Manifold Restriction

6шт.

23

87573434

HOLDER

Vacuum Hose

2шт.
