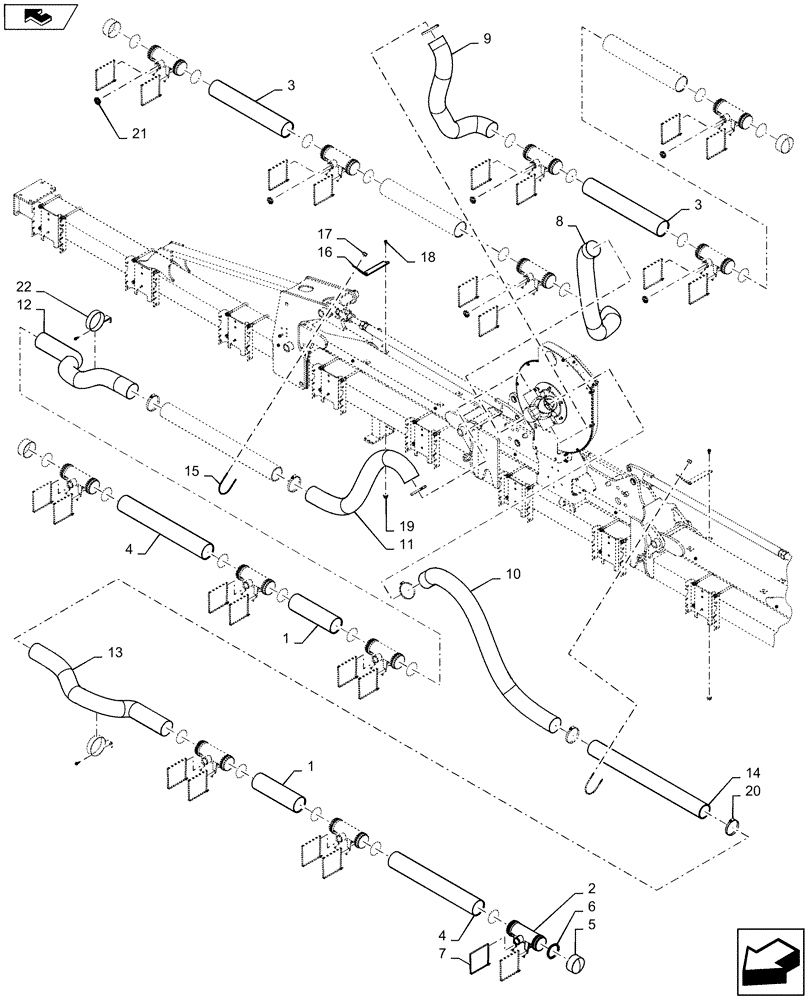

Запчасти Case IH 1235 (79.103.AA[04]) - VACUUM HOSE SYSTEM 12 ROW 36" (79) - PLANTING

1

84364345

TUBE

Vacuum Manifold 460 mm

2шт.

2

300766A1

TEE

Manifold

12шт.

3

84364348

TUBE

Manifold 720 mm

4шт.

4

84364352

TUBE

940 mm

2шт.

5

300767A1

CAP

Manifold End

4шт.

6

47484434

O-RING

4 -1/4 X 4-5/8"

20шт.

7

112620A1

CABLE TIE

34"

24шт.

8

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1620 mm

1шт.

9

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1620 mm

1шт.

10

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1620 mm

1шт.

11

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1620 mm

1шт.

12

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1730 mm

1шт.

13

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1730 mm

1шт.

14

84144826

PIPE

4.5" X 1150

2шт.

15

392969A1

U-BOLT

Vacuum

4шт.

16

84145361

BRACKET

Hose Holder Painted

4шт.

17

86625061

NUT,1/4"-20, GB

8шт.

18

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

19

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

8шт.

20

9706924

HOSE CLAMP,103.1mm - 127mm

12шт.

21

305519A1

PLUG

Vacuum Manifold

6шт.

22

87573434

HOLDER

Vacuum Hose

2шт.
