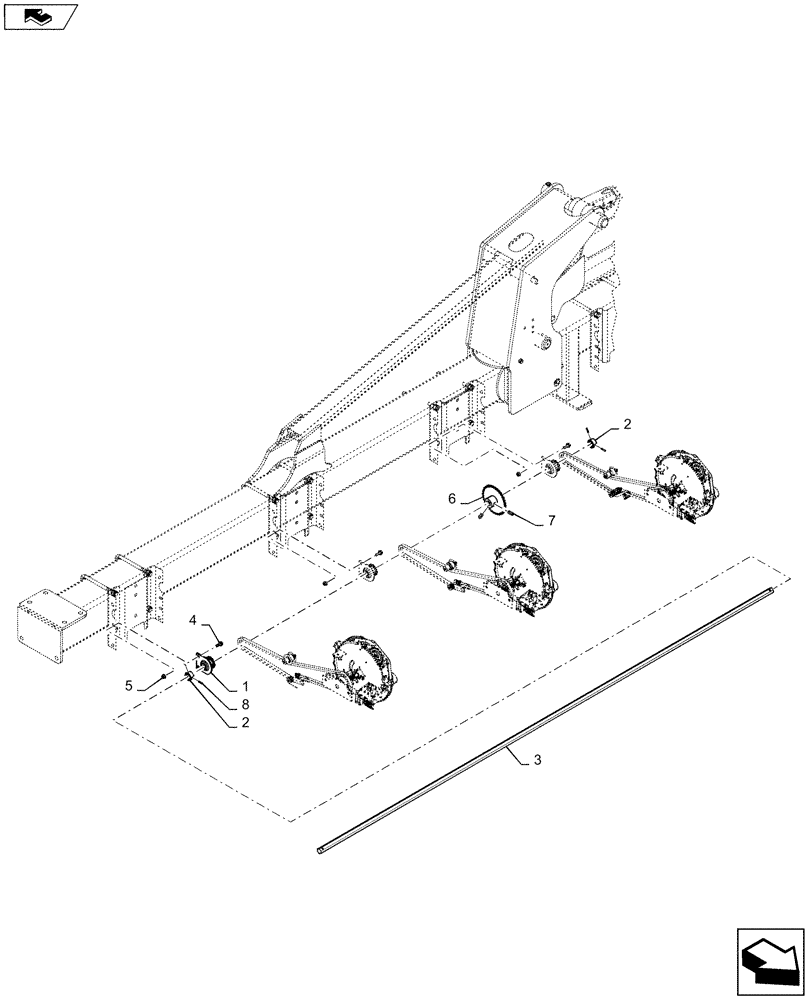

Запчасти Case IH 1235 (61.901.AF[03]) - METERING DRIVE SHAFT FOR 12 ROW 36",38" (61) - METERING SYSTEM

1

413712A1

BEARING ASSY,1.90625" OD x 1.875"

12шт.

2

22224

COLLAR

8шт.

3

402450A1

SHAFT

22 mm Hex 2434 mm

4шт.

4

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

24шт.

5

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

24шт.

6

353037A1

SPROCKET

34 Tooth

4шт.

7

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

8

84523394

KEYWAY

Set Screw 7/8"

1шт.
