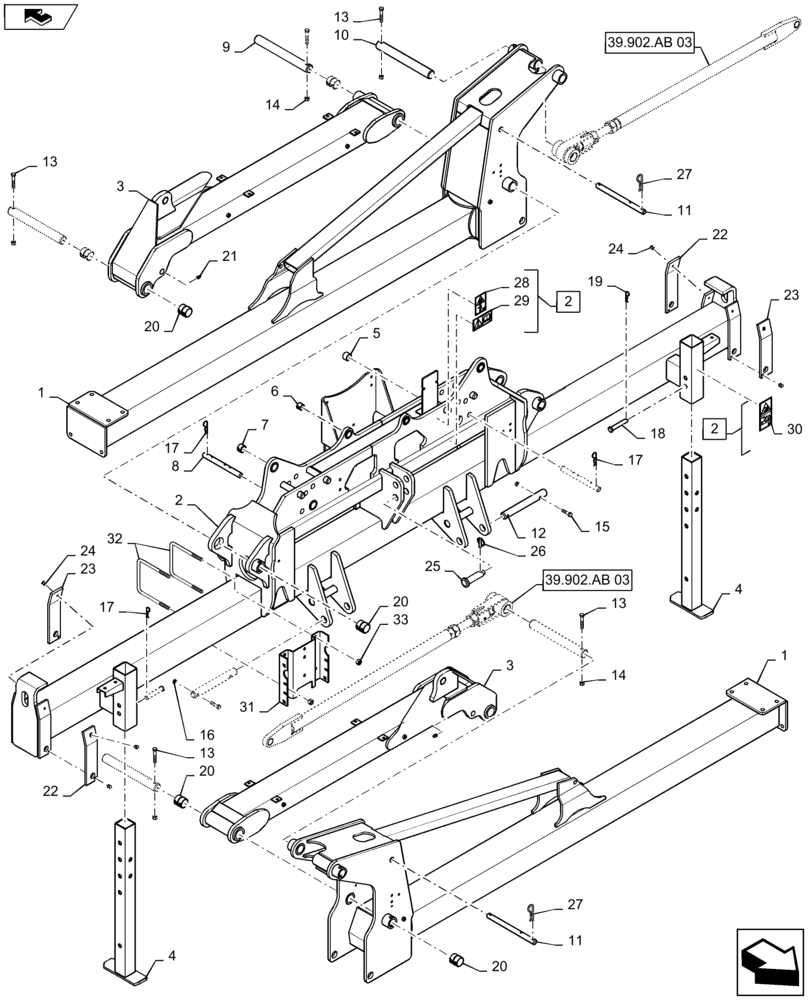

Запчасти Case IH 1235 (39.902.AA[03]) - STACKER BAR FRAME FOR 12 ROW 36" AND 38" (39) - FRAMES AND BALLASTING

1

87648741

BEAM

Fame Wing Painted

2шт.

2

47563349

DRAWBAR FRAME

12 Row Painted Incl Decals 28 - 30

1шт.

3

84143764

LINK

Parallel Lift Arm

2шт.

4

87566136

STAND

Stacker Bar Painted

2шт.

5

6636

BUSHING

1.5 X 1.25 X 1"

2шт.

6

3523

BUSHING

1.25 X 1 X 1"

2шт.

7

87505190

BUSHING

1.5 X 1.25 X 1"

4шт.

8

87565221

PIN

Gull Wing Lock

2шт.

9

87630548

PIN

44.45 X 350

4шт.

10

87734383

44.45 X 358

2шт.

11

87653801

PIN,25.4mm OD x 340mm L

1 X 291

2шт.

12

87566119

PIN

Lower 3 Point

2шт.

13

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

6шт.

14

87333862

NUT

1/2"

6шт.

15

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

16

86632537

THIN NUT,1/2"-13, GB, Thin

4шт.

17

3741

HAIR PIN COTTER,M19

4шт.

18

86632566

HEADED PIN,3/4" x 4 1/2", G5

2шт.

19

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.

20

87594339

BUSHING

2 x 1.75 X 2

8шт.

21

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

4шт.

22

87630550

GUIDE

0.5 X 3 Wing Right Front And Left Rear

2шт.

23

87623822

GUIDE

0.5 X 3 Wing Right Rear And Left Front

2шт.

24

47524986

RIVET

1/4" x 1.25"

8шт.

25

392211R2

PIN

Upper Link

1шт.

26

372907R91

LINCH PIN

1шт.

27

3682

HAIR PIN COTTER

4шт.

28

47358801

CAUTION DECAL

ISO

1шт.

29

47433182

DECAL

Chemical Hazard

1шт.

30

84600363

DECAL

Crushing Hazard

2шт.

31

141728C5

BRACKET

Channel Head

1шт.

32

1250813C1

U-BOLT

5/8-11 7 X 7 "

2шт.

33

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.
