(35.745.AA[05]) - HYDRAULIC SEED DRIVE FOR 12 ROW 36",38"

Запчасти Case IH 1235 (35.745.AA[05]) - HYDRAULIC SEED DRIVE FOR 12 ROW 36",38" (35) - HYDRAULIC SYSTEMS

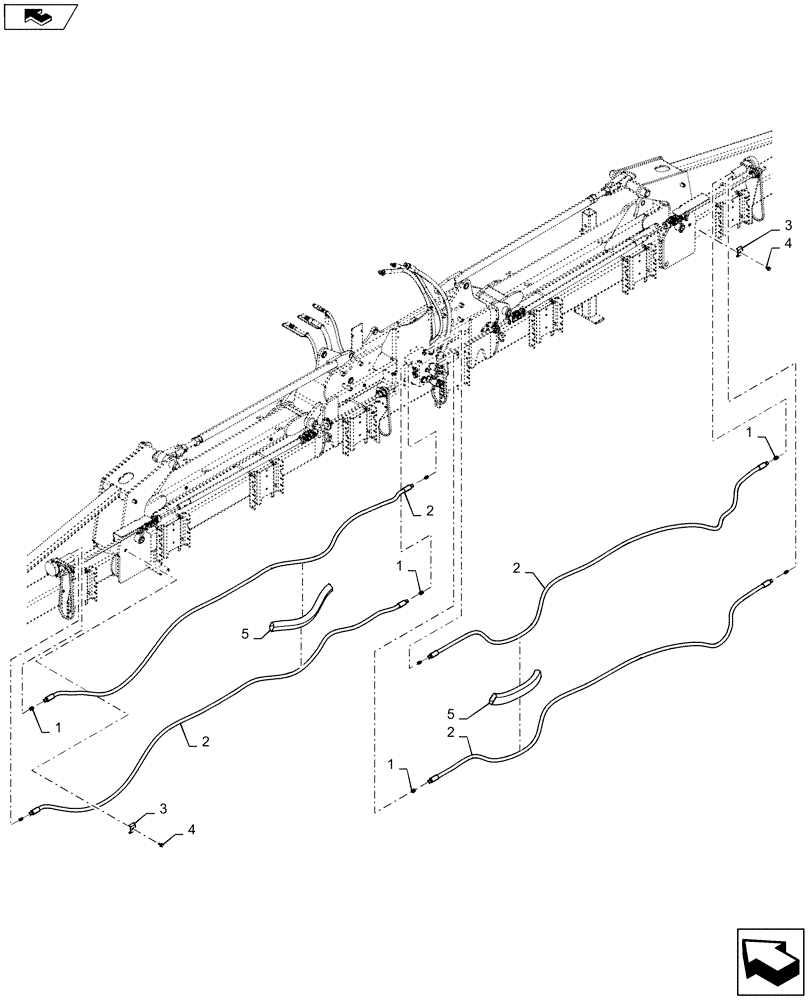

Схема запчастей Case IH 1235 - (35.745.AA[05]) - HYDRAULIC SEED DRIVE FOR 12 ROW 36",38" (35) - HYDRAULIC SYSTEMS
1
5
home
1
2
5
4
1
4
2
2
1
3
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

8шт.

2

97646C1

HYDRAULIC HOSE,12.70 mm ID x 381.00 mm, SAE 100 R1

4шт.

3

427779A1

CLAMP

Hose

6шт.

4

50215

BOLT,Hex Serr Flg, 3/8" - 16 x 1/2"

6шт.

5

87502709

PROTECTIVE SLEEVE,2-1/2" OD x 18" L

2.5 x 18

2шт.
