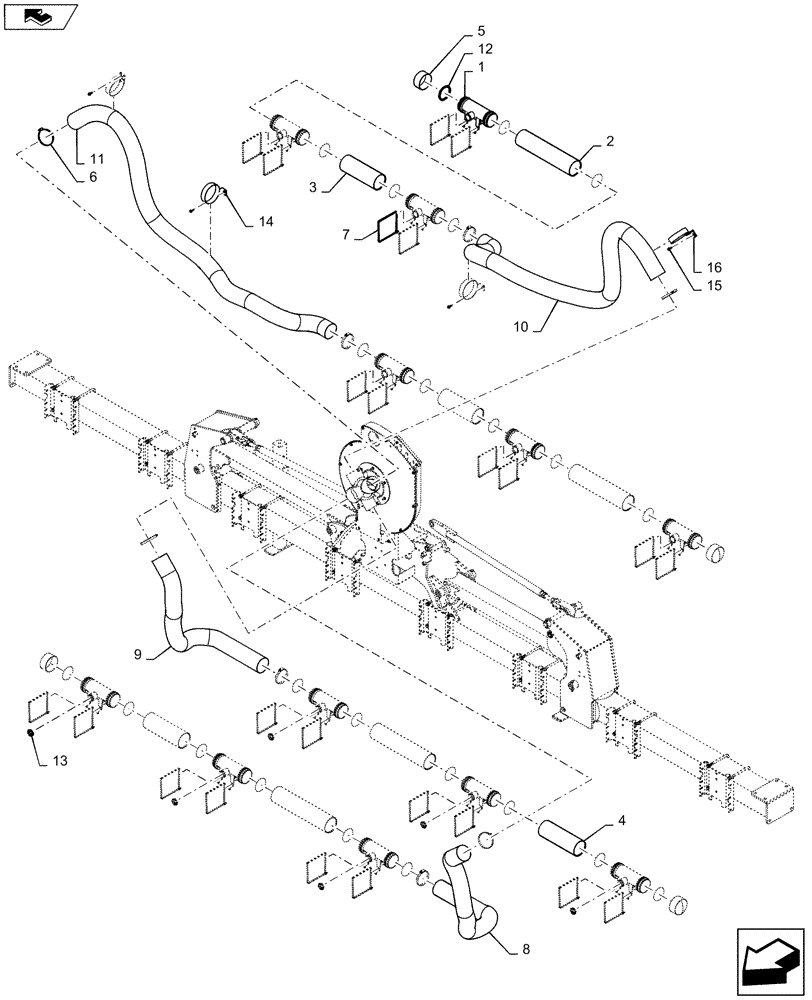

Запчасти Case IH 1235 (79.103.AA[03]) - VACUUM HOSE SYSTEM 12 ROW 30" (79) - PLANTING

1

300766A1

TEE

Vacuum Manifold

12шт.

2

301441A1

TUBE,116.88 mm ID, 125 mm OD, 556 mm Length

4шт.

3

308014A1

TUBE,116.88 mm ID, 125 mm OD, 350 mm Length

2шт.

4

84364343

TUBE

365mm

2шт.

5

300767A1

CAP

Manifold End

4шт.

6

47484434

O-RING

4-1/4 x 4-5/8"

20шт.

7

112620A1

CABLE TIE

34"

24шт.

8

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1600mm

1шт.

9

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 1600mm

1шт.

10

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 3440mm

1шт.

11

362013A1

HOSE,114.30 mm ID x 7620.00 mm

Bulk Cut To Length 3440mm

1шт.

12

9706924

HOSE CLAMP,103.1mm - 127mm

8шт.

13

305519A1

PLUG

Vacuum Manifold Restriction

6шт.

14

87573434

HOLDER

Vacuum Hose

2шт.

15

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

16

323214A1

GUIDE

4.5" Flex Hose

2шт.
