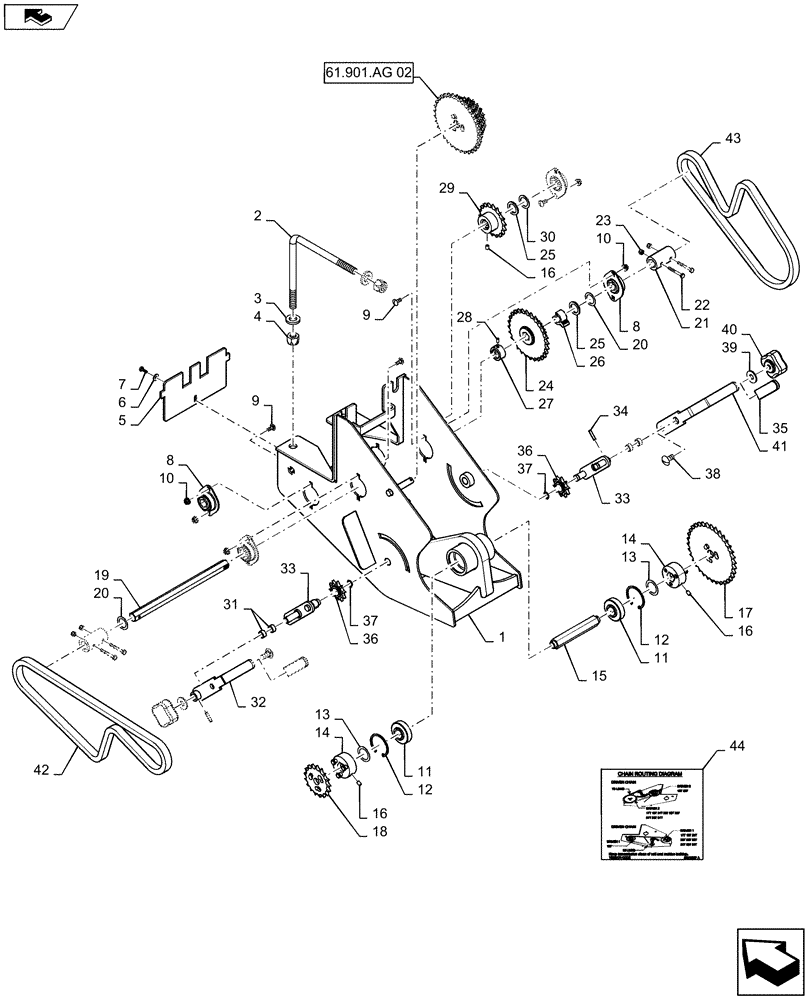

Запчасти Case IH 1235 (61.901.AG[01]) - MECHANICAL DRIVE TRANSMISSION (61) - METERING SYSTEM

1

87740977

FRAME

Transmission Painted

1шт.

2

87670751

BOLT

L-Bolt 3/4-9.5

2шт.

3

86624163

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

4шт.

4

9626598

NUT,3/4"-10, GB

4шт.

5

87743271

COVER

Front Painted

1шт.

6

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

1шт.

7

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

8

87566583

FLANGED BEARING,22.25mm ID

4шт.

9

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

8шт.

10

145458

SERRATED NUT,5/16"-18 GR 5 ZND

8шт.

11

87746596

BALL BEARING,1" ID x 2.44" OD

2шт.

12

32324

SNAP RING,2.44", Int, #244

2шт.

13

87304341

WASHER,1.27" ID x 1.75" OD x 0.03" Thk

2шт.

14

87746647

HUB

Quick Change

2шт.

15

87739184

SHAFT

Quick Change

1шт.

16

84523393

SET SCREW

5/16-18X1/2

5шт.

17

87592214

SPROCKET

50 X 34mm

1шт.

18

87592206

SPROCKET

50 X 17 mm

1шт.

19

87739161

DRIVEN SHAFT

Hex

1шт.

20

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

2шт.

21

400583A1

COUPLING,22.48mm ID x 38.1mm OD x 70mm L

Seed Drive

2шт.

22

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

23

20356

NUT,1/4"-20, GB

4шт.

24

87631085

SPROCKET

Range Selector

1шт.

25

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

2шт.

26

87627709

SPACER

Hex

1шт.

27

22224

COLLAR

Lock 1/4-28 X 3/8"

1шт.

28

84523394

KEYWAY

Set Screw

2шт.

29

87610744

SPROCKET

50 X 18 mm

1шт.

30

86624169

WASHER,1.03" ID x 1.5" OD x 0.06" Thk

1шт.

31

87740329

BUSHING

Chain Tensioner

4шт.

32

87740280

ARM

Left Tensioner Painted

1шт.

33

87739189

IDLER

2шт.

34

47522930

PIN

1/4 X 1-1/8"

2шт.

35

1958265C1

GRIP

Handle Vinyl

2шт.

36

87536428

SPROCKET

With Bushing

4шт.

37

83902308

SNAP RING

4шт.

38

280499

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

39

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

40

329636A1

KNOB

1/2-13"

2шт.

41

87740282

ARM

Right Tensioner Painted

1шт.

42

84425475

CHAIN

Transmission Driver

1шт.

43

84425476

CHAIN

Transmission Driven

1шт.

44

84545297

DECAL

Trans Operation

1шт.
