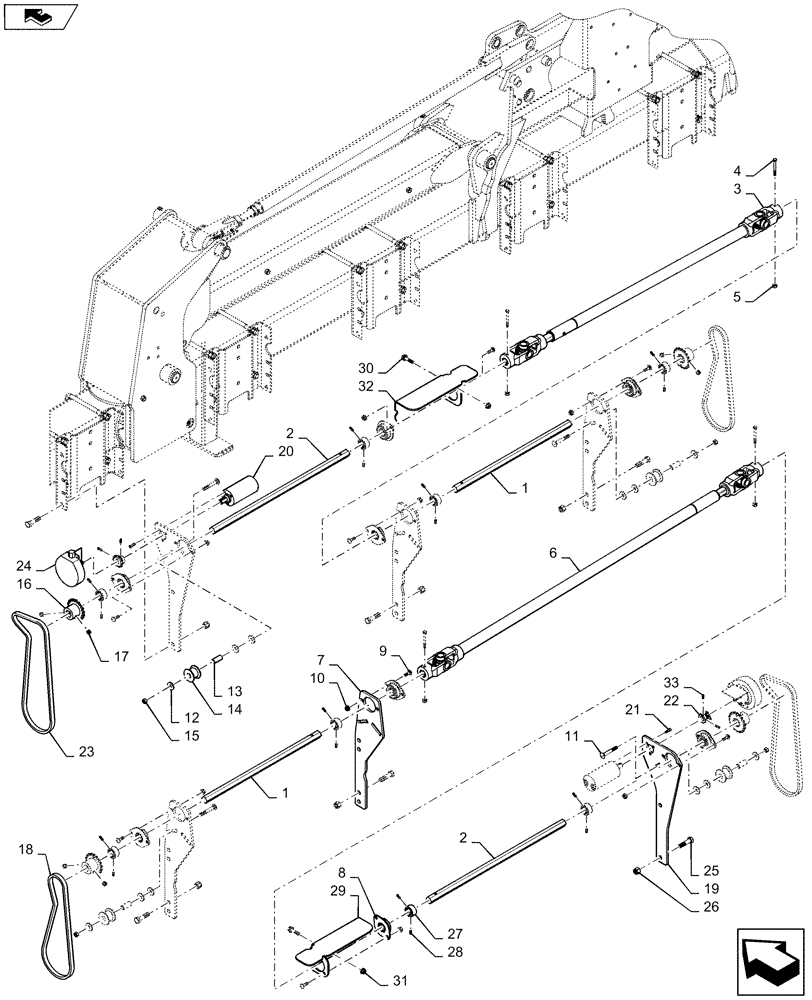

Запчасти Case IH 1235 (61.901.AB[10]) - HYDRAULIC DRIVELINE CROSS OVER FOR 12 ROW 30" (61) - METERING SYSTEM

1

87690806

SHAFT

7/8" Hex 560 mm

2шт.

2

87690807

SHAFT

7/8" Hex 660 mm

2шт.

3

87739825

DRIVE SHAFT

Painted

1шт.

4

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

4шт.

5

87034810

NUT,1/4"-20, GA

4шт.

6

87739825

DRIVE SHAFT

Painted

1шт.

7

87648811

BRACKET

Driveline Support Painted

4шт.

8

134158C92

BALL BEARING,22.5mm ID

8шт.

9

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

16шт.

10

145458

SERRATED NUT,5/16"-18 GR 5 ZND

16шт.

11

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

4шт.

12

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

12шт.

13

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

Chain Idler

4шт.

14

1277726C1

ROLLER,48mm OD x 34mm L

Idler

4шт.

15

9628503

NUT,3/8"-16, G5

4шт.

16

103681A1

SPROCKET

18 Tooth

4шт.

17

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

18

84485910

CHAIN

40-1 X 77 Links

2шт.

19

87675628

BRACKET

Driveline Support Painted

2шт.

20

293288A1

MOTOR

Meter Drive

2шт.

20

293288A1R

REMAN-HYD MOTOR

Meter Drive

2шт.

20

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

21

86632598

HEX SOC SCREW,1/4" - 28 x 3/4"

6шт.

22

84551195

SPROCKET

10 Tooth

2шт.

23

84485909

CHAIN

40-1 X 91 Links

2шт.

24

296164A2

SENSOR

Application Rate

2шт.

25

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

26

9636698

NUT,1/2"-13, GB

12шт.

27

22224

COLLAR

Lock

8шт.

28

84580735

SET SCREW

1/4"

16шт.

29

87675620

BRACKET

Driveline Wing Right Painted

1шт.

30

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

6шт.

31

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

32

87675621

BRACKET

Driveline Wing Left Painted

1шт.

33

86632577

SET SCREW,Hex Skt, 1/4" - 20 x 1/4"

4шт.
