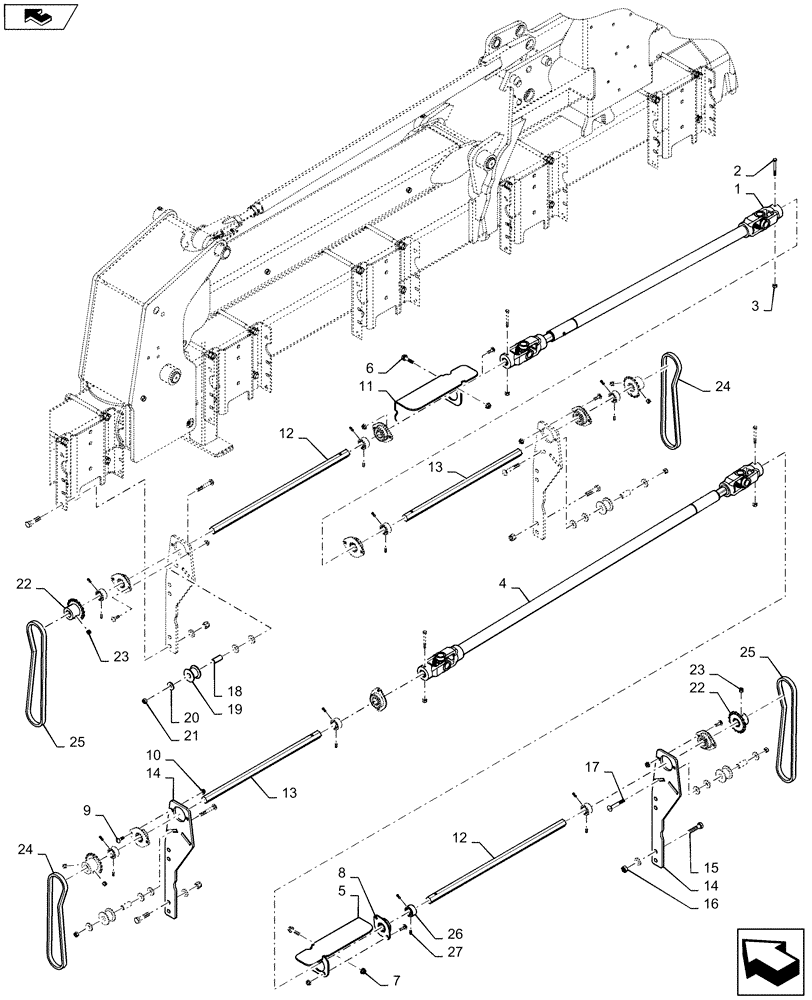

Запчасти Case IH 1235 (61.901.AB[05]) - MECHANICAL DRIVELINE FOR 12 ROW 30" (61) - METERING SYSTEM

1

87739825

DRIVE SHAFT

Left

1шт.

2

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

4шт.

3

87034810

NUT,1/4"-20, GA

4шт.

4

87739825

DRIVE SHAFT

Right

1шт.

5

87675620

BRACKET

Driveline Wing Right Painted

1шт.

6

86512175

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

6шт.

7

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

8

134158C92

BALL BEARING,22.5mm ID

8шт.

9

88992

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 5

16шт.

10

145458

SERRATED NUT,5/16"-18 GR 5 ZND

16шт.

11

87675621

BRACKET

Driveline Wing Left Painted

1шт.

12

87690807

SHAFT

7/8" Hex 660 mm

2шт.

13

87492001

CROSS SHAFT

7/8" Hex 495 mm

2шт.

14

87648811

BRACKET

Driveline Support

6шт.

15

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

16

9636698

NUT,1/2"-13, GB

12шт.

17

280628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 5

4шт.

18

381930A1

BUSHING,10.34mm ID x 15.88mm OD x 36.5mm L

Chain Idler

4шт.

19

1277726C1

ROLLER,48mm OD x 34mm L

Idler

4шт.

20

86624186

WASHER,0.41" ID x 1.12" OD x 0.13" Thk

8шт.

21

9628503

NUT,3/8"-16, G5

4шт.

22

103681A1

SPROCKET

40 - 18 Tooth

4шт.

23

86624123

SET SCREW,Hex Skt, 1/2" - 13 x 1/2"

8шт.

24

84485912

CHAIN

40-1 68 Links

2шт.

25

84485911

CHAIN

40-1 74 Links

2шт.

26

22224

COLLAR

Lock

8шт.

27

84523394

KEYWAY

Set Screw

16шт.
