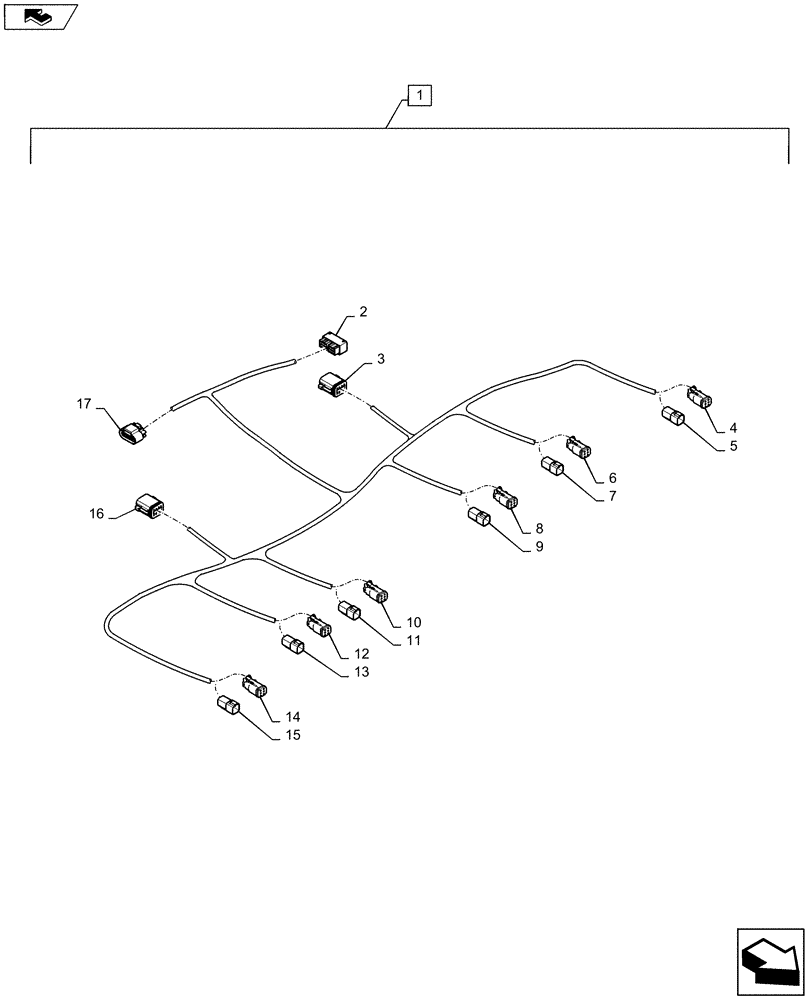

Запчасти Case IH 1235 (55.516.AE[03]) - HARNESS CABLE DRIVE ROW UNIT ELECTRIC CLUTCH CENTER FOR 12 ROW 30" (55) - ELECTRICAL SYSTEMS

1

84540218

WIRE HARNESS

HARNESS CABLE DRIVE ROW UNIT ELECTRIC CLUTCH CENTER FOR 12 Row 30" Incl 2 - 17

1шт.

2

84138326

ELEC CONNECTOR

30 Way Clutch ECU

1шт.

3

87700325

ELEC CONNECTOR,Female, 8 Cavities

Right Wing Clutches

1шт.

4

87700107

ELEC CONNECTOR

Clutch And Seed Row 9

1шт.

5

87700106

ELEC CONNECTOR

Seed Sensor Row 9

1шт.

6

87700107

ELEC CONNECTOR

Clutch And Seed Row 8

1шт.

7

87700106

ELEC CONNECTOR

Seed Sensor Row 8

1шт.

8

87700107

ELEC CONNECTOR

Clutch And Seed Row 7

1шт.

9

87700106

ELEC CONNECTOR

Seed Sensor Row 7

1шт.

10

87700107

ELEC CONNECTOR

Clutch And Seed Row 6

1шт.

11

87700106

ELEC CONNECTOR

Seed Sensor Row 6

1шт.

12

87700107

ELEC CONNECTOR

Clutch And Seed Row 5

1шт.

13

87700106

ELEC CONNECTOR

Seed Sensor Row 5

1шт.

14

87700107

ELEC CONNECTOR

Clutch And Seed Row 4

1шт.

15

87700106

ELEC CONNECTOR

Seed Sensor Row 4

1шт.

16

87700325

ELEC CONNECTOR,Female, 8 Cavities

Left Wing Clutches

1шт.

17

84137509

ELEC CONNECTOR

Clutch Option

1шт.
