(55.100.AI[05]) - SEED SENSOR HARNESS WING 12 ROW 30"

Запчасти Case IH 1235 (55.100.AI[05]) - SEED SENSOR HARNESS WING 12 ROW 30" (55) - ELECTRICAL SYSTEMS

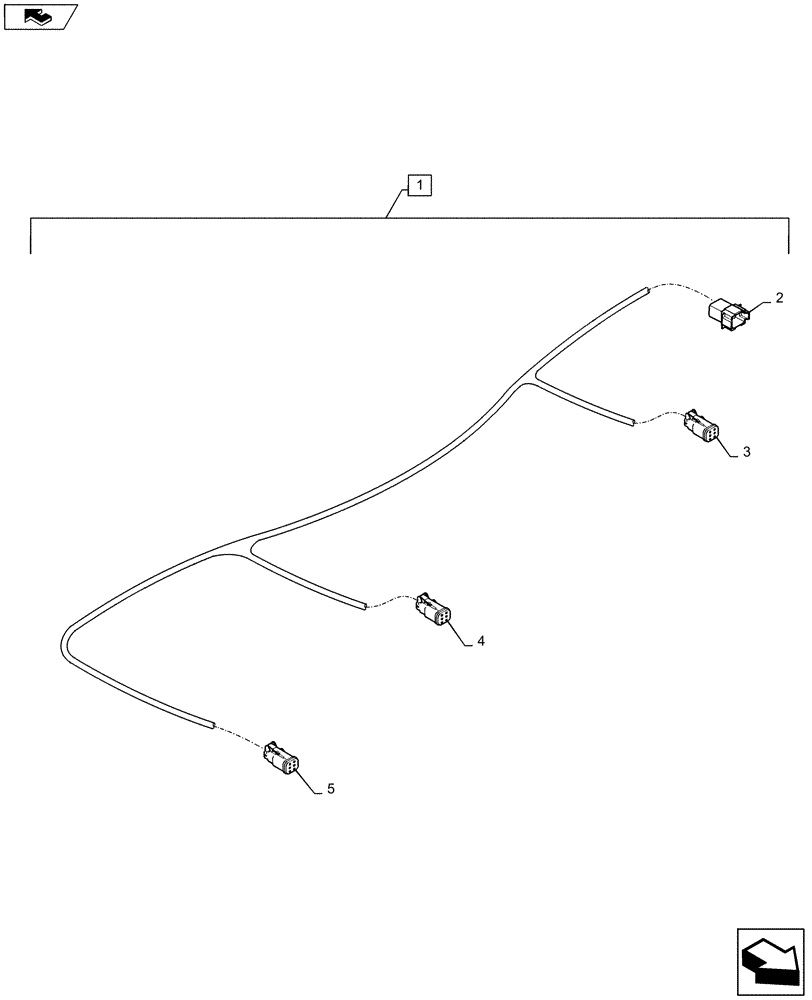

Схема запчастей Case IH 1235 - (55.100.AI[05]) - SEED SENSOR HARNESS WING 12 ROW 30" (55) - ELECTRICAL SYSTEMS
2
home
4
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84539995

WIRE HARNESS

Seed Sensor Wing 12 Row 30" Incl 2 - 5

1шт.

2

87700331

Seed Wing

1шт.

3

87700107

ELEC CONNECTOR

Seed Sensor Row 3 Or 10

1шт.

4

87700107

ELEC CONNECTOR

Seed Sensor Row 2 Or 11

1шт.

5

87700107

ELEC CONNECTOR

Seed Sensor Row 1 Or 12

1шт.
