Запчасти Case IH 1235 (55.100.AI[04]) - SEED SENSOR HARNESS 12 ROW 30"CENTER (55) - ELECTRICAL SYSTEMS

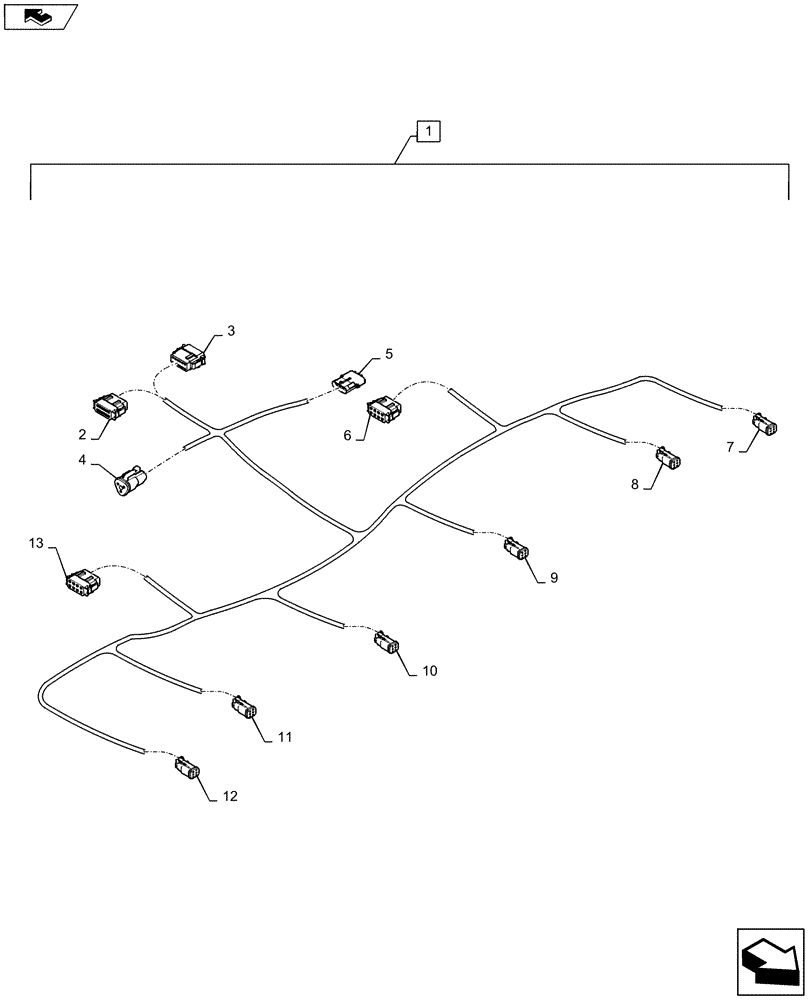

Схема запчастей Case IH 1235 - (55.100.AI[04]) - SEED SENSOR HARNESS 12 ROW 30"CENTER (55) - ELECTRICAL SYSTEMS
10
home
8
6
5
12
3
9
4
2
7
13
11
1

Артикул

Название

Примечание

Количество

1

84539994

WIRE HARNESS

Seed Sensor 12 Row 30" Incl 2 - 13

1шт.

2

87700156

CONTACT HOUSING,Female, 12 Pole

Seed Module A

1шт.

3

87705101

MULTIPOLE CONNECTOR,Female, 12 Pole

1шт.

4

84074635

CONTACT HOUSING,Female, 3 Pole

CAN 2

1шт.

5

87692802

ELEC CONNECTOR

Seed Sensor Bus

1шт.

6

87700332

ELEC CONNECTOR

Right Wing Seed Sensor

1шт.

7

87700107

ELEC CONNECTOR

Seed Sensor Row 9

1шт.

8

87700107

ELEC CONNECTOR

Seed Sensor Row 8

1шт.

9

87700107

ELEC CONNECTOR

Seed Sensor Row 7

1шт.

10

87700107

ELEC CONNECTOR

Seed Sensor Row 6

1шт.

11

87700107

ELEC CONNECTOR

Seed Sensor Row 5

1шт.

12

87700107

ELEC CONNECTOR

Seed Sensor Row 4

1шт.

13

87700332

ELEC CONNECTOR

Left Wing Seed Sensor

1шт.

Выбрано товаров: 13
