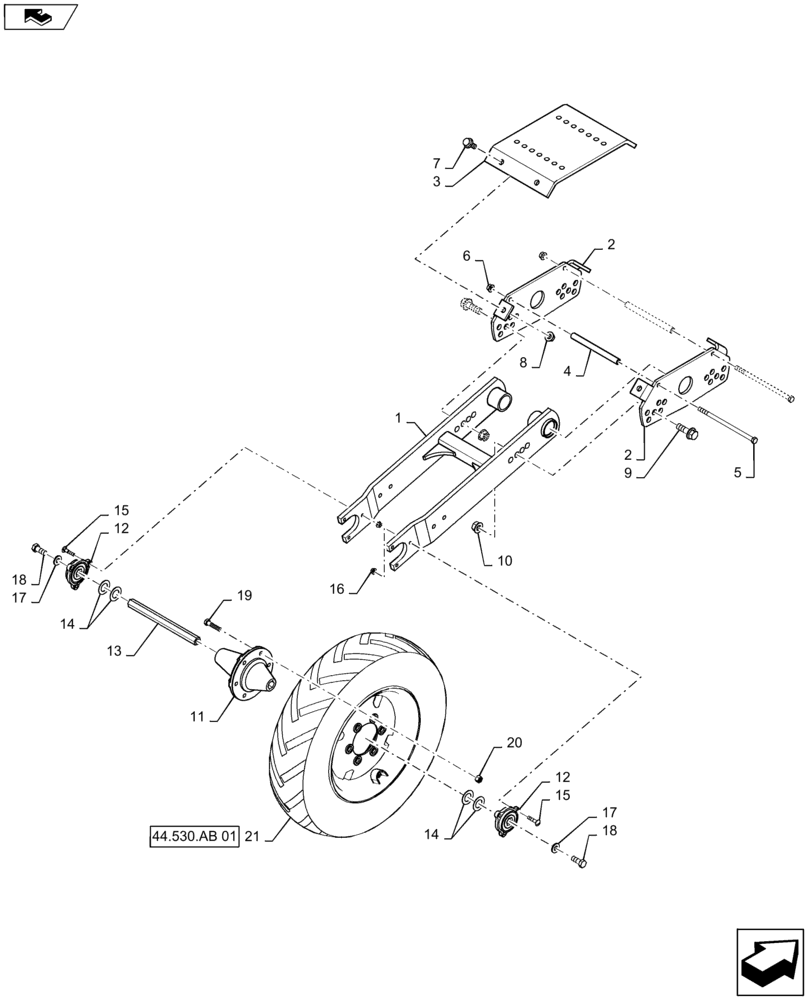

Запчасти Case IH 1235 (44.530.AC[01]) - CARRIER WHEEL MOUNTING FOR 8 AND 12 ROW (44) - WHEELS

1

87565531

FRAME

Rail Dual Arm Wheel

1шт.

2

87703810

PLATE

Side Mount Painted

2шт.

3

87703812

PLATE

Mount Top Narrow Painted

1шт.

4

87548228

SPACER

Wheel Mount

2шт.

5

84183814

BOLT

.500 X 10.0

2шт.

6

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

7

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

4шт.

8

86521608

FLANGE NUT,Flg, 5/8"-11, G5

4шт.

9

84490436

FLANGE BOLT

3/4 X 2.25"

2шт.

10

84490435

FLANGE NUT

3/4"

2шт.

11

293985A2

HUB

Wheel

1шт.

12

233254A1

BEARING ASSY,25.55mm ID

2шт.

13

293986A1

BAR

Axle Wheel

1шт.

14

86624175

WASHER,1.16" ID x 2" OD x 0.06" Thk

4шт.

15

86508775

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

6шт.

16

247780

SERRATED NUT,Flg, USR, 3/8"-16

6шт.

17

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

2шт.

18

86622997

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

2шт.

19

86622972

BOLT,Spcl, Hex, 1/2" - 20 x 2 1/4", Gr 8, Full Thd

6шт.

20

F23214

WHEEL NUT

1/2"-20

6шт.

21

332455A2

WHEEL ASSY

Tire Right

1шт.

21

311004A2

WHEEL ASSY

Tire Left

1шт.
