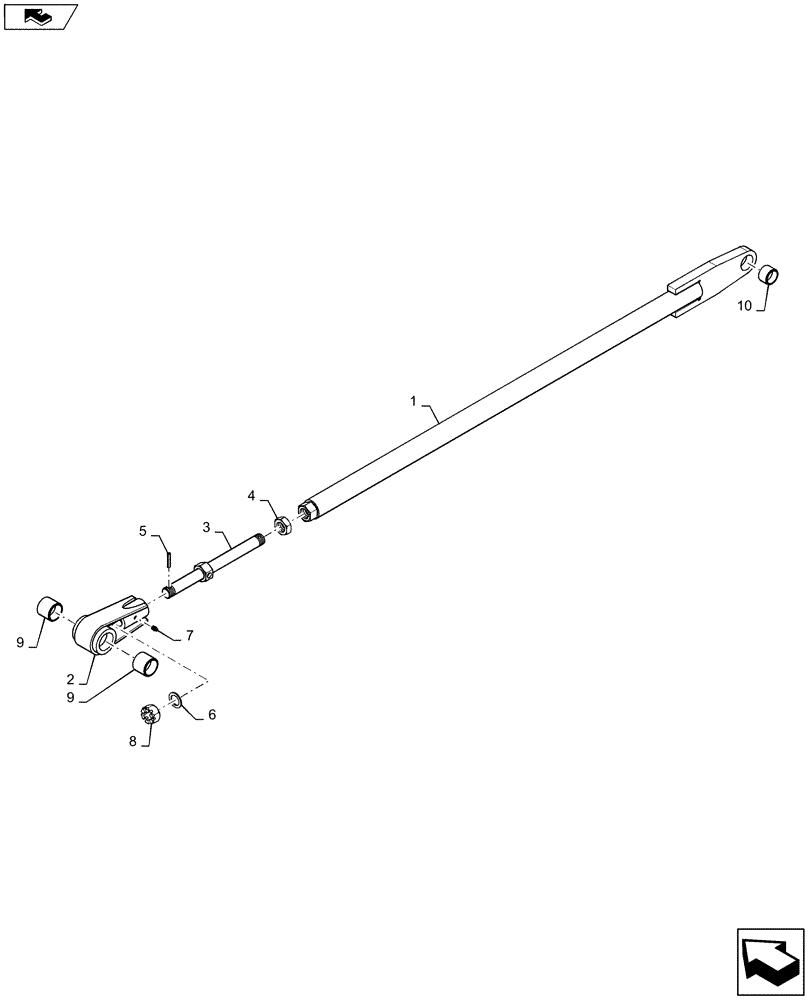

Запчасти Case IH 1235 (39.902.AB[02]) - ADJUSTABLE TENSION LINK FOR 12 ROW 30" (39) - FRAMES AND BALLASTING

1

87630535

LIFT ARM

Tension Painted

1шт.

2

87630536

COUPLING

Tension Link Painted

1шт.

3

87565220

STUD

Tension Link

1шт.

4

87919

JAM NUT,Jam, 1"-8, G2

1шт.

5

87406

LOCK PIN,6.35mm OD x 38.1mm L, Slotted

1шт.

6

87325444

WASHER,1.02" ID x 1.5" OD x 0.07" Thk

1.016 X 1.500 x .090"

1шт.

7

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

8

7827

SLOTTED NUT,1"-8, G2

1шт.

9

87686636

BUSHING,1-1/2" ID x 1-3/4" OD x 1-1/2" Thk

1.75 X 1.5 X 1.5"

2шт.

10

6636

BUSHING

1.5 X 1.25 X 1"

1шт.
