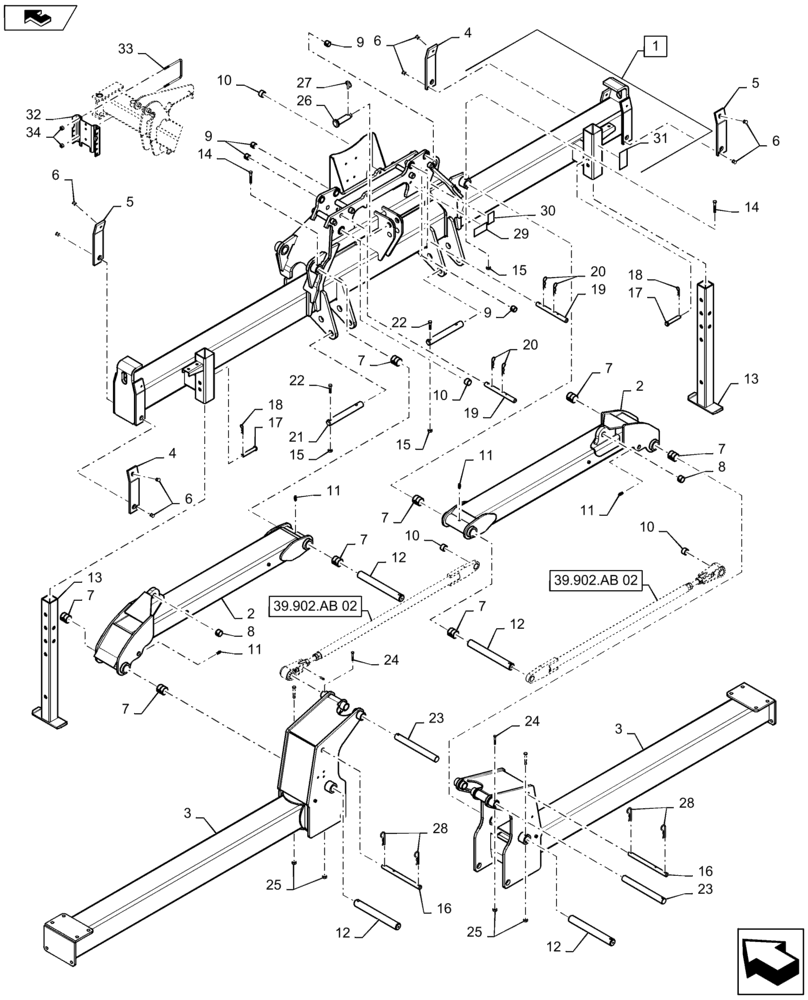

Запчасти Case IH 1235 (39.902.AA[02]) - STACKER BAR FRAME FOR 12 ROW 30" (39) - FRAMES AND BALLASTING

1

47563196

DRAWBAR FRAME

12 Row Painted Incl Decals 29 - 31

1шт.

2

87630534

LIFT ARM

12 Row Painted Parallel

2шт.

3

87623833

BEAM

12 Row Painted Wing

2шт.

4

87630550

GUIDE

0.5 X 3 Wing Right Front And Left Rear

2шт.

5

87623822

GUIDE

0.5 X 3 Wing Right Rear And Left Front

2шт.

6

47524986

RIVET

1/4 X 1.25"

8шт.

7

87594339

BUSHING

2 X 1.75 X 2"

8шт.

8

87505190

BUSHING

1.5 X 1.25 X 1 X 1"

2шт.

9

3523

BUSHING

1.25 X 1 X 1"

4шт.

10

6636

BUSHING

1.5 X 1.25 X 1"

2шт.

11

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

4шт.

12

87630548

PIN

4.45 X 350"

4шт.

13

87566136

STAND

Stacker Bar

2шт.

14

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

15

86632537

THIN NUT,1/2"-13, GB, Thin

8шт.

16

87653801

PIN,25.4mm OD x 340mm L

1" X 291"

2шт.

17

86632566

HEADED PIN,3/4" x 4 1/2", G5

2шт.

18

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

2шт.

19

87565221

PIN

Gull Wing Lock

2шт.

20

3741

HAIR PIN COTTER,M19

4шт.

21

87566119

PIN

Lower 3 Point

2шт.

22

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

23

87630549

PIN

1.5" X 337mm

2шт.

24

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

25

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

26

392211R2

PIN

Upper Link

1шт.

27

372907R91

LINCH PIN

1шт.

28

3682

HAIR PIN COTTER

4шт.

29

47358801

CAUTION DECAL

ISO

1шт.

30

47433182

DECAL

Chemical Hazard

1шт.

31

84600363

DECAL

Danger Crushing Hazard

2шт.

32

141728C5

BRACKET

Channel Head

1шт.

33

1250813C1

U-BOLT

5/8-11 7 x 7 "

2шт.

34

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.
