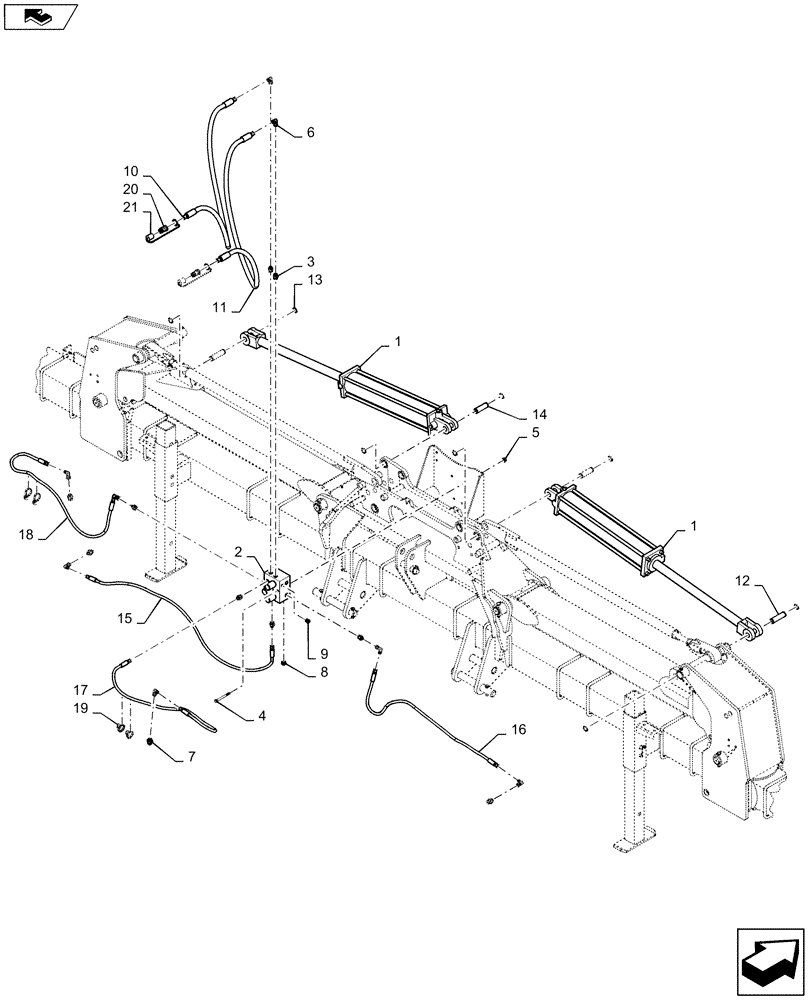

Запчасти Case IH 1235 (35.560.AA[02]) - HYDRAULICS TOOL BAR FOLD FOR 12 ROW 30" (35) - HYDRAULIC SYSTEMS

1

9652

HYDRAULIC CYLINDER,Double Acting, 44.5mm Rod, 610mm Stroke

4 x 24" 3000 PSI No Pins

2шт.

1

9652R

REMAN-HYD CYLINDER

1235 STACKER PLANTER 12 ROW 30" EARLY RISER® SERIES, 4 x 24" 3000 PSI no pins (10/13-)

2шт.

1

9652C

CORE-HYD CYLINDER

Return Number

2шт.

2

302403A3

VALVE

Stacker Bar

1шт.

3

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

6шт.

4

84192885

BOLT

3/8 -16 X 3.75"

2шт.

5

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

2шт.

6

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

8шт.

7

87592554

ORIFICE

4шт.

8

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

9

9625178

PLUG,9/16" - 18 ORB

1шт.

10

47519129

HYDRAULIC HOSE

Pressure 10 mm ID X 1905 mm

1шт.

11

47519129

HYDRAULIC HOSE

Return 10 mm 1905 mm

1шт.

12

84361345

PIN

25.4 X 85.6

2шт.

13

87019495

SNAP RING,#98, Ext

8шт.

14

84361344

PIN

25.4 X 73.15

2шт.

15

47519244

HYDRAULIC HOSE

6.4 mm ID X 1400 mm

1шт.

16

47519235

HYDRAULIC HOSE

6.4 mm ID X 1270 mm

1шт.

17

47519514

HYDRAULIC HOSE

Left 6.4 mm ID X 1195 mm

1шт.

18

47519514

HYDRAULIC HOSE

Right 6.4 mm ID 1195 mm

1шт.

19

87502038

CABLE TIE

14.5"

4шт.

20

86592080

QUICK MALE COUPLING

2шт.

21

333721A1

CAP

Quick Coupler Red

2шт.
