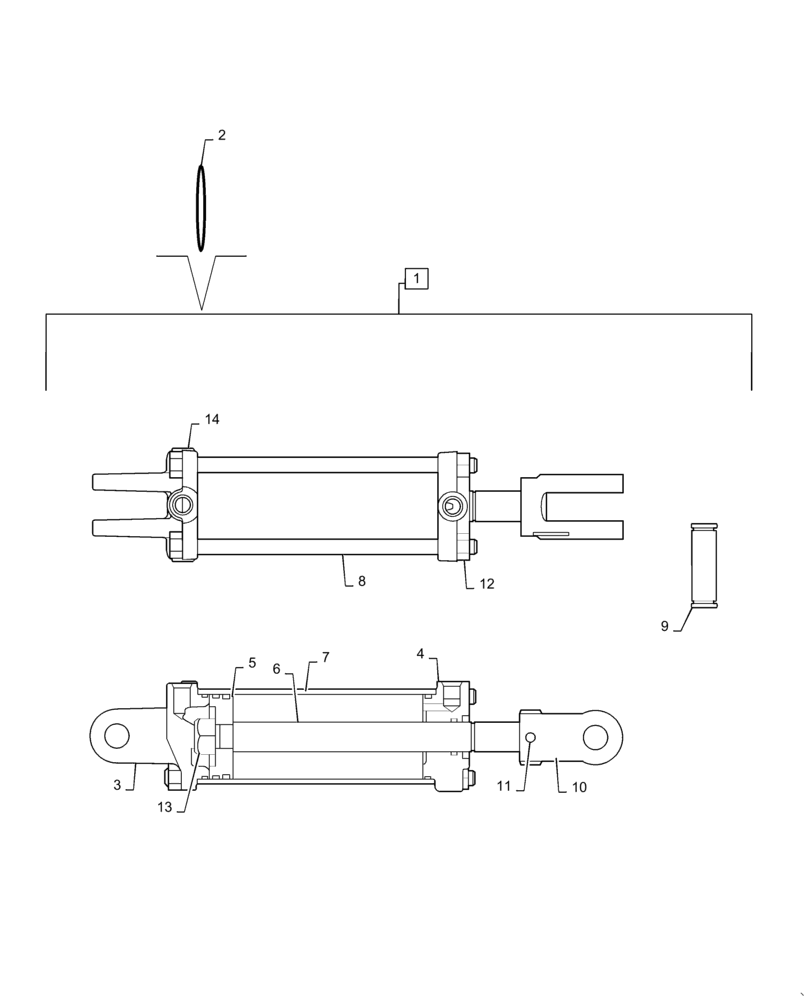

Запчасти Case IH 1235 (35.100.BI[06]) - HYDRAULIC CYLINDER 3.5X8 3000PSI NO PINS (35) - HYDRAULIC SYSTEMS

1

87660742

HYDRAULIC CYLINDER,31.75mm Rod, 254mm Stroke

3.5X8 3000PSI NO PINS INCL 3 - 14

1шт.

2

87548059

SEAL KIT

1шт.

3

87409430

HEAD

CYLINDER BASE

1шт.

4

21755

HEAD

1шт.

5

87690837

PISTON

CYL 3.5 BORE MONARCH

1шт.

6

9682

SHAFT

1шт.

7

87661330

TUBE,3.5 mm DIA x 8 mm L

1шт.

8

8656

BOLT

CYL TIE ROD 8 MON .625-11UNC

4шт.

9

87637931

PIN,25.4mm OD x 85.6mm L

1шт.

10

87409387

CLEVIS,1 -1/4" - 12

1шт.

11

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

12

25-1110

NUT,5/8"-18, G5

8шт.

13

87314800

LOCK NUT

1шт.

14

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.
