Запчасти Case IH 1235 (79.105.AI[10]) - PNEUMATIC DOWN PRESSURE COMPRESSOR (79) - PLANTING

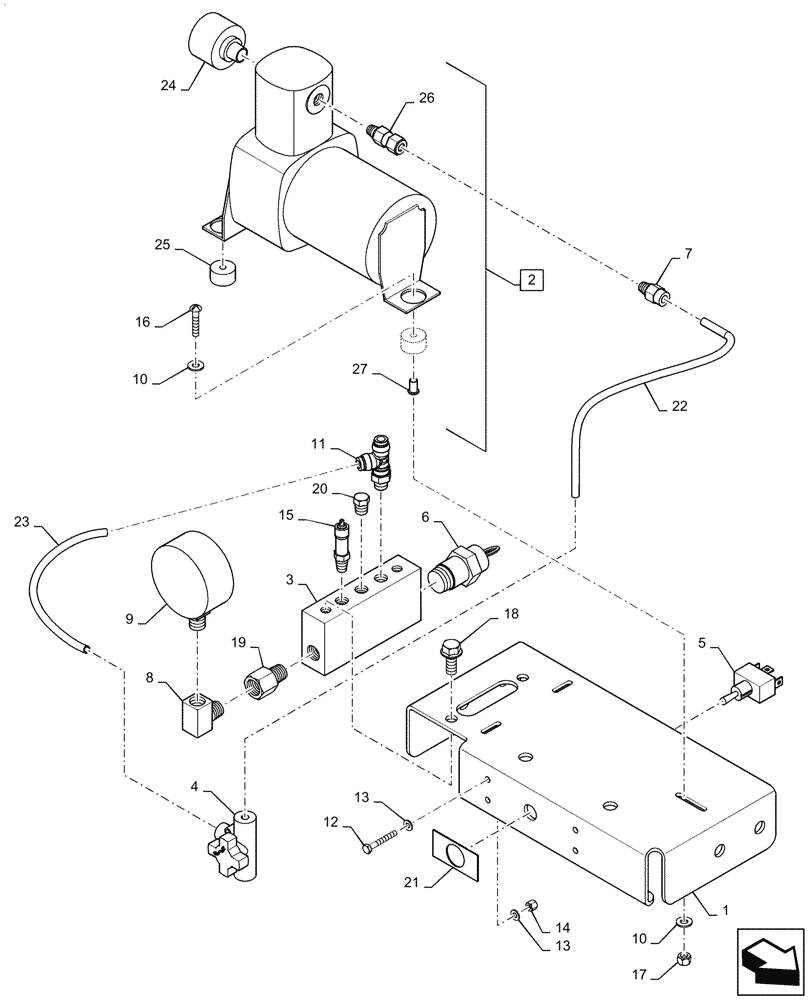

Схема запчастей Case IH 1235 - (79.105.AI[10]) - PNEUMATIC DOWN PRESSURE COMPRESSOR (79) - PLANTING
17
25
13
4
14
12
11
10
15
8
20
9
18
21
3
7
13
26
19
5
27
23
10
16
6
2
1
24
22

Артикул

Название

Примечание

Количество

1

84282814

BRACKET

Pneumatic Mounting Red

1шт.

2

84282522

PUMP,12V

Pneumatic, Incl 24 - 27

1шт.

2

84282522R

REMAN-HYD PUMP,12V

Reman, Pneumatic

1шт.

2

84282522C

CORE-HYDRAULIC PUMP,12V

Return Number

1шт.

3

87623678

MANIFOLD

Pneumatic Down Pressure

1шт.

4

87623679

PNEUMATIC VALVE

3 Way Change

1шт.

5

84124092

TOGGLE SWITCH

Power

1шт.

6

87474591

VALVE PRESSURE RELIE

110 PSI

1шт.

7

84256879

FITTING

Male 1/4"

1шт.

8

58771

ELBOW

90°

1шт.

9

21380

GAUGE

Pressure 2" 0- 160 PSI

1шт.

10

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

6шт.

11

84394584

FITTING

Tee 1/4"

1шт.

12

385682

BOLT,Hex, M4 x 30mm, Cl 8.8

2шт.

13

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

14

86625075

NUT,M4 x 0.7, Cl 8

2шт.

15

87623685

VALVE

Tank Schrader

1шт.

16

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

3шт.

17

86632551

NUT,#10-24, GB

3шт.

18

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

19

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

1шт.

20

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

1шт.

21

84165754

DECAL

On / Off

1шт.

22

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

Cut to Length 285mm

1шт.

23

87675607

HOSE, BULK,4.318 mm ID x 6.35 mm OD x 76200 mm L

Cut to Length 285mm

1шт.

24

87623801

AIR FILTER

Compresor

1шт.

25

87734597

GROMMET

Rubber Compresor Mount

1шт.

26

87734595

CHECK VALVE

In-Line

1шт.

27

87734596

EYELET

Insert

1шт.

Выбрано товаров: 29
