(A.50.A[06]) - HARNESS TRACTOR 252 RECEIVER 87399017

Запчасти Case IH 1200PT (A.50.A[06]) - HARNESS TRACTOR 252 RECEIVER 87399017 A - Distribution Systems

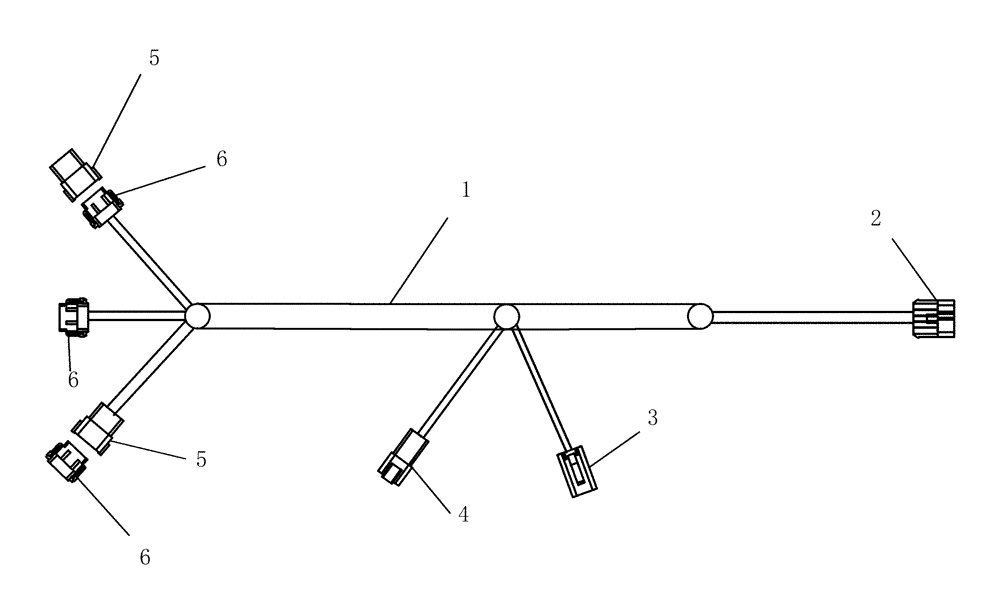

Схема запчастей Case IH 1200PT - (A.50.A[06]) - HARNESS TRACTOR 252 RECEIVER 87399017 A - Distribution Systems
5
4
1
2
6
6
6
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87399017

HARNESS

tractor 252 GPS

1шт.

2

182079A1

TERMINAL CONNECTOR,Male, 5 Pin

Shroud 5 Way Metri-Pak 280

1шт.

3

86622300

ELEC CONNECTOR

4-cav Plug DT Series

1шт.

4

87694154

CONTACT HOUSING,Male, 4 Pole

Deutsch DT4

1шт.

5

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

2шт.

6

87700156

CONTACT HOUSING,Female, 12 Pole

Deutsch 12 way dtm plug, grey

3шт.
