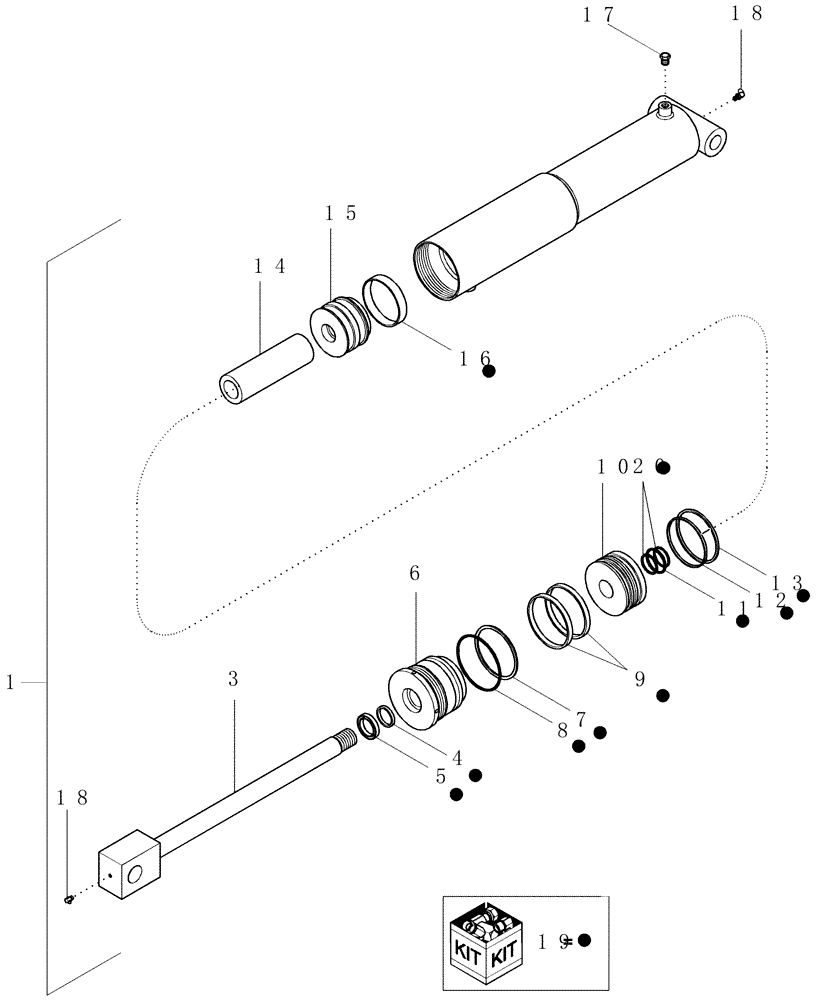

Запчасти Case IH 1200PT (A.10.A[02]) - HYDRAULIC CYLINDER - 87441307 (BSN CBJ022483) A - Distribution Systems

1

87441307

HYDRAULIC CYLINDER

3 7/8" x 4 3/4" 3000 PSI SA, wing, Start Serial: CBJ0018188

1шт.

1

87439451R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, BSN CBJ022483, 3 7/8" x 4 3/4" 3000 PSI SA, wing, Start Serial: CBJ0018188 (11/01-7/08), Reman for New PN 87441307

1шт.

1

87439451C

CORE-HYD CYLINDER

Return Number

1шт.

3

87441308

ROD

assembly, wing cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

Included in repair kit 87405839

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Included in repair kit 87405839

1шт.

6

87407143

GLAND

head front 3 7/8" bore

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 87405839

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER BACKUP

1шт.

Included in repair kit 87405839

1шт.

9

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

Included in repair kit 87405839

1шт.

10

87407141

PISTON

floating 3 7/8" bore

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING, PISTON ROD

1шт.

Included in repair kit 87405839

1шт.

12

NSS

NOT SOLD SEPARAT

PISTON SEAL EXPANDER

1шт.

Included in repair kit 87405839

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON SEAL

1шт.

Included in repair kit 87405839

1шт.

14

87407144

SPACER

wing cylinder

1шт.

15

87407140

PISTON

wing cylinder 3 1/2" bore

1шт.

16

NSS

NOT SOLD SEPARAT

RING BEARING

1шт.

Included in repair kit 87405839

1шт.

17

87407145

BREATHER

wing cylinder

1шт.

18

80719

LUBE NIPPLE,1/8" NPT

2шт.

19

87405839

SEAL KIT

hyd cyl service 3 7/8" Hyco 1 1/4" rod

1шт.

20

NSS

NOT SOLD SEPARAT

BACKUP RING

2шт.

Included in repair kit 87405839

1шт.
