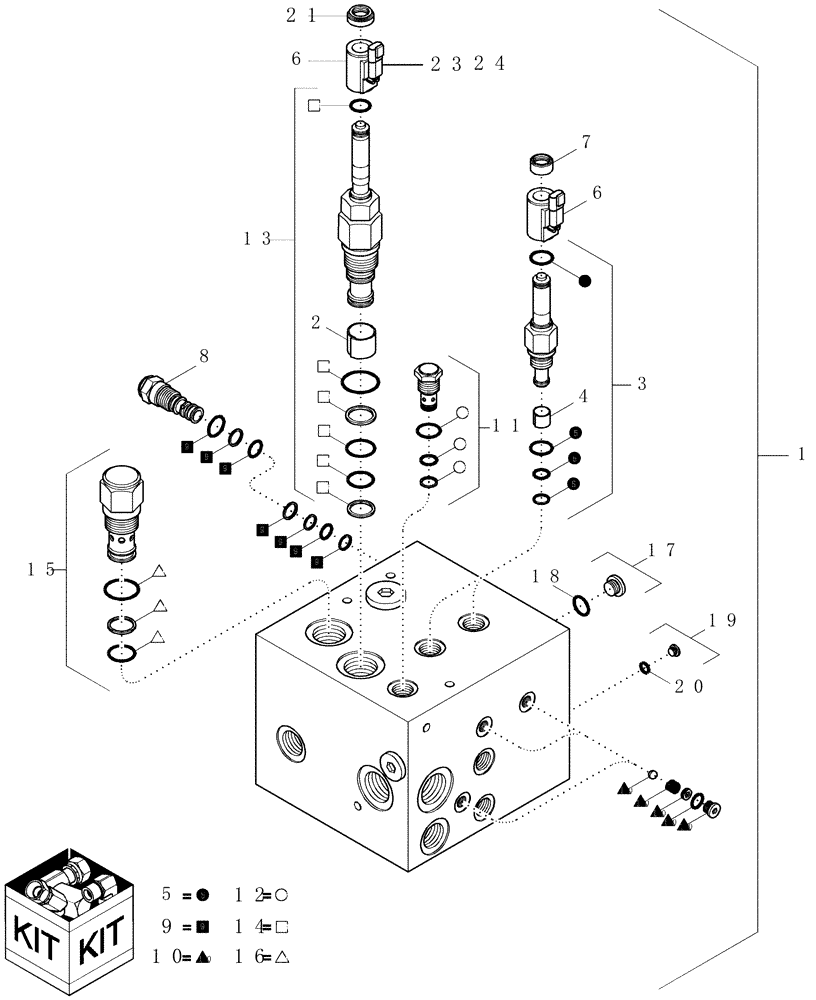

Запчасти Case IH 1200PT (A.10.A[76]) - MULTI-VALVE VALVE ASSEMBLY 390535A2 (BSN CBJ022056) A - Distribution Systems

1

390535A2

VALVE, CONTROL

assembly multi-valve

1шт.

2

324489A1

SCREEN

proportional valve

1шт.

3

254969A2

HYDRAULIC VALVE

flow control cartridge

2шт.

4

1285892C1

FILTER SCREEN

2шт.

5

304494A1

SEAL KIT

seal, flow control valve

2шт.

6

243254A1

KIT

Solenoid

3шт.

7

440028A1

NUT

coil retaining

2шт.

8

278200A1

VALVE

assembly, compensator

2шт.

9

S301087

SEAL KIT

differential pressure compensator

2шт.

10

1341811C1

SPRING-CHECK

REPAIR KIT sense check

3шт.

11

86511474

CHECK VALVE

Coast

1шт.

12

86508168

SEAL KIT

Relief Valve

1шт.

13

304495A3

VALVE

cartridge, flow control

1шт.

304495A3R

REMAN-HYD VALVE

1200PT (BSN CBJ022056) (11/01-7/08)

1шт.

304495A3C

CORE-VALVE HYD

Return Number

1шт.

84537688R

REMAN-HYD VALVE

1200PT (BSN CBJ022056) (11/01-7/08), Reman For New P/N 304495A3

1шт.

84537688C

CORE-VALVE HYD

Return Number

1шт.

14

304499A1

SEAL KIT

seal, flow control cartridge

1шт.

15

335894A1

VALVE

flow limiter

1шт.

16

1288954C1

SEAL KIT

1шт.

17

9625178

PLUG,9/16" - 18 ORB

2шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

19

86632547

PLUG,Hex, 5/16"-24 ORB

1шт.

20

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

21

188106A1

NUT

retaining, Serial Range: coil-stem

1шт.

23

225315C1

ELEC CONNECTOR,Male, 2 Pin

Cab Plastic Receptacle 2C

1шт.

24

225318C1

ELEC CONNECTOR,2 Pin

W2P

1шт.
