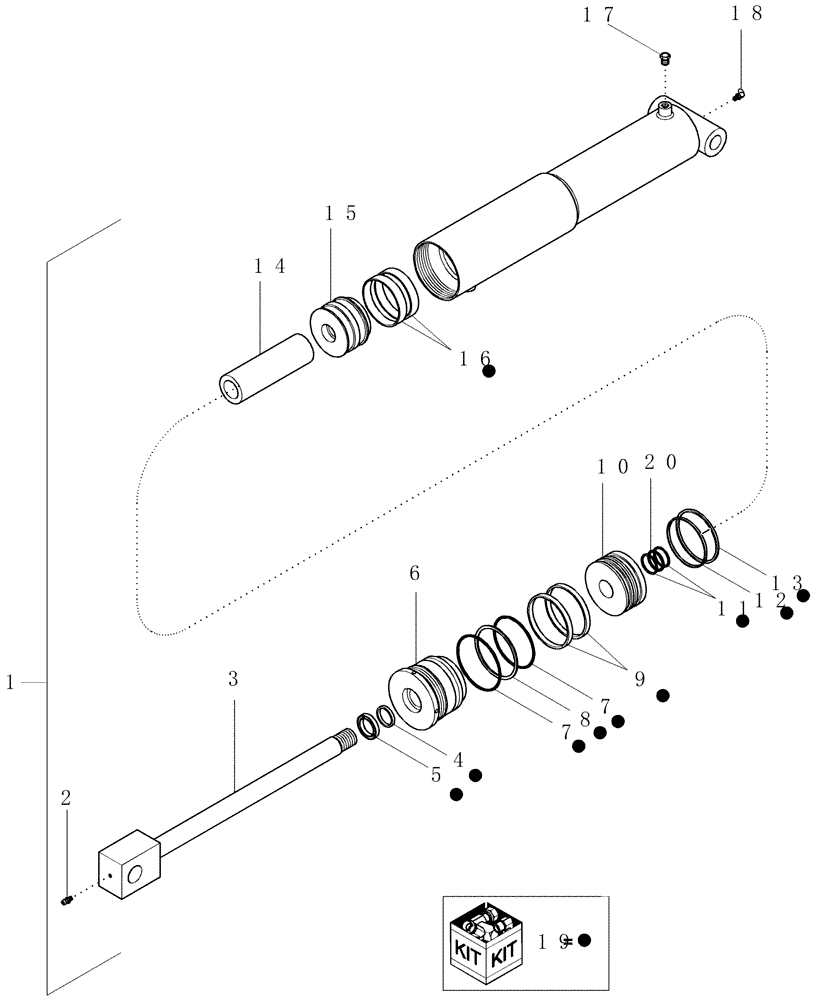

Запчасти Case IH 1200PT (A.10.A[01]) - HYDRAULIC CYLINDER - 396137A2 A - Distribution Systems

1

396137A2

HYDRAULIC CYLINDER

wing lift, Serial Range: -CBJ0018184

1шт.

1

87439451R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, wing lift, Serial Range: -CBJ0018184 (11/01-7/08), Reman for New PN 396137A2

1шт.

1

87439451C

CORE-HYD CYLINDER

Return Number

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

1шт.

3

402473A1

PISTON ROD

1шт.

4

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

Included in repair kit 402476A1

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Included in repair kit 402476A1

1шт.

6

402474A1

CYLINDER END CAP

head, front

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

2шт.

Included in repair kit 402476A1

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER BACKUP

1шт.

Included in repair kit 402476A1

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL PISTON, CROWN

2шт.

Included in repair kit 402476A1

1шт.

10

402468A1

PISTON ROD/GLAND

floating

1шт.

11

NSS

NOT SOLD SEPARAT

BACKUP RING

2шт.

Included in repair kit 402476A1

1шт.

12

NSS

NOT SOLD SEPARAT

PISTON SEAL EXPANDER

1шт.

Included in repair kit 402476A1

1шт.

13

NSS

NOT SOLD SEPARAT

PISTION SEAL

1шт.

Included in repair kit 402476A1

1шт.

14

402471A1

SPACER

1шт.

15

402469A1

PISTON ROD/GLAND

1шт.

16

NSS

NOT SOLD SEPARAT

RING BEARING

2шт.

Included in repair kit 402476A1

1шт.

17

402475A1

BREATHER

1шт.

18

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

19

402476A1

SEAL KIT

kit

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Included in repair kit 402476A1

1шт.
