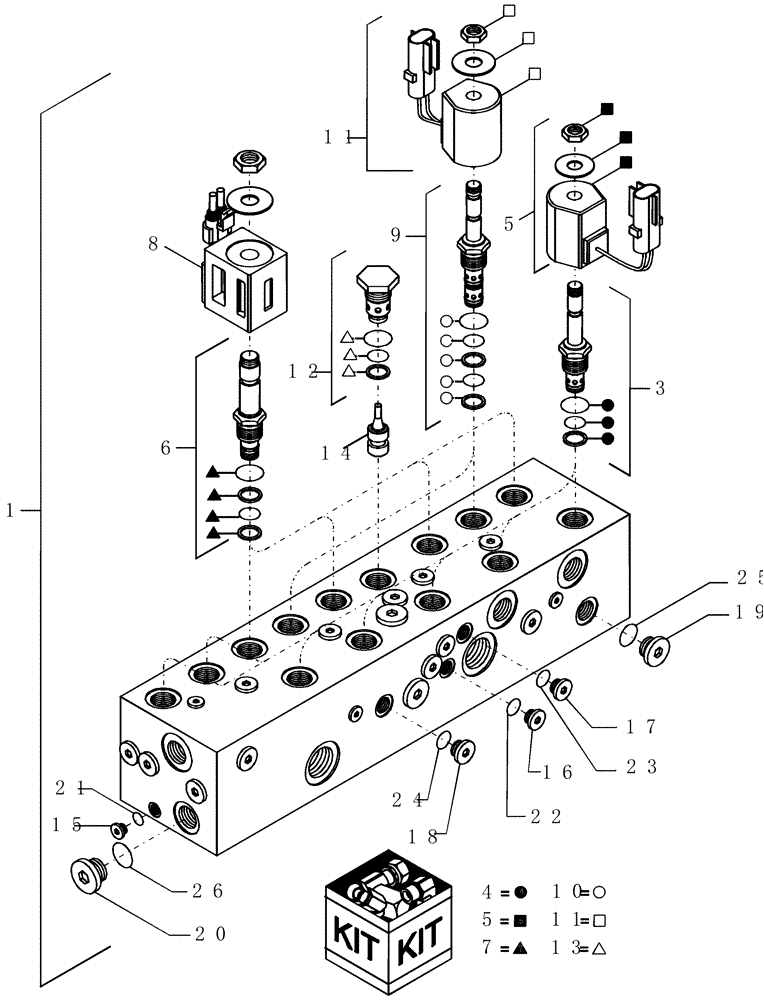

Запчасти Case IH 1200PT (A.10.A[73]) - LIFT AND PIVOT SOLENOID VALVE ASSEMBLY (BSN CBJ025391) A - Distribution Systems

1

401591A1

VALVE, CONTROL

assembly lift and fold

1шт.

3

87436627

VALVE

assembly 2 way cartridge

7шт.

4

86508168

SEAL KIT

Relief Valve

7шт.

5

1340843C1

SOLENOID,12V

solenoid with Packard

7шт.

6

330535A1

VALVE

bi-directional cartridge

4шт.

7

126054A1

SEAL PACKAGE

flow control

4шт.

8

330536A1

SOLENOID

coil, bi-directional

4шт.

9

190711A1

VALVE

3-way 2 position cartridge

2шт.

10

1260872C91

SEAL KIT

2шт.

11

1340843C1

SOLENOID,12V

solenoid with Packard

2шт.

12

442478A1

CHECK VALVE

assembly 20 PSI

1шт.

13

86508168

SEAL KIT

Relief Valve

1шт.

14

1272343C2

PISTON

pilot

1шт.

15

86632547

PLUG,Hex, 5/16"-24 ORB

1шт.

16

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

17

87035062

PLUG,Hex, 1/2"-20 ORB

1шт.

18

9625178

PLUG,9/16" - 18 ORB

1шт.

19

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

20

86625138

PLUG,7/18" - 14

1шт.

21

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

22

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

23

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.
