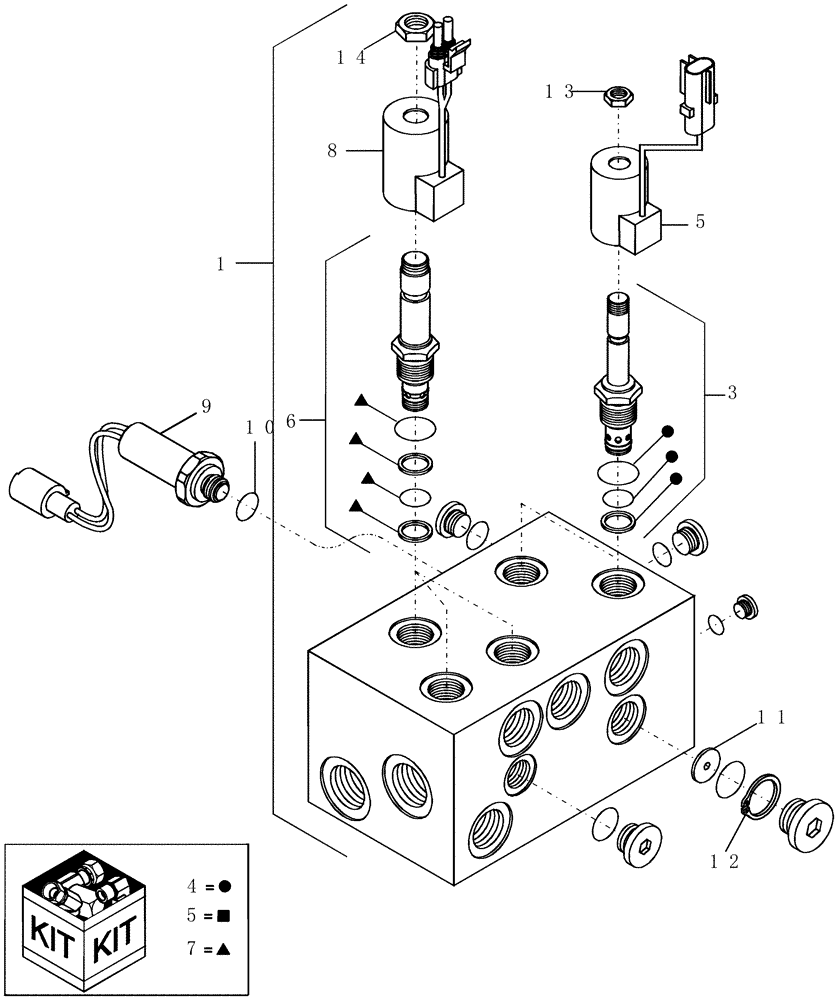

Запчасти Case IH 1200PT (A.10.A[72]) - ROW MARKER SOLENOID VALVE ASSEMBLY 401592A1 (ASN CBJ025392) A - Distribution Systems

1

401592A1

VALVE, CONTROL

assembly marker

1шт.

3

87436627

VALVE

assembly 2 way cartridge

2шт.

4

86508168

SEAL KIT

Relief Valve

2шт.

5

1340843C1

SOLENOID,12V

solenoid with Packard

2шт.

6

330535A1

VALVE

bi-directional cartridge

3шт.

7

126054A1

SEAL PACKAGE

flow control

3шт.

8

330536A1

SOLENOID

coil, bi-directional

3шт.

9

1547188C1

SWITCH

pressive inv

1шт.

10

237-8006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 8, 90 Duro

1шт.

11

126158A1

ORIFICE

disk .110" & .042"

1шт.

12

100-2175

SNAP RING,0.75", Int, #75

1шт.

13

73113425

NUT

1/2"-20, Thin

2шт.

14

87463363

NUT

5/8"-24

3шт.
