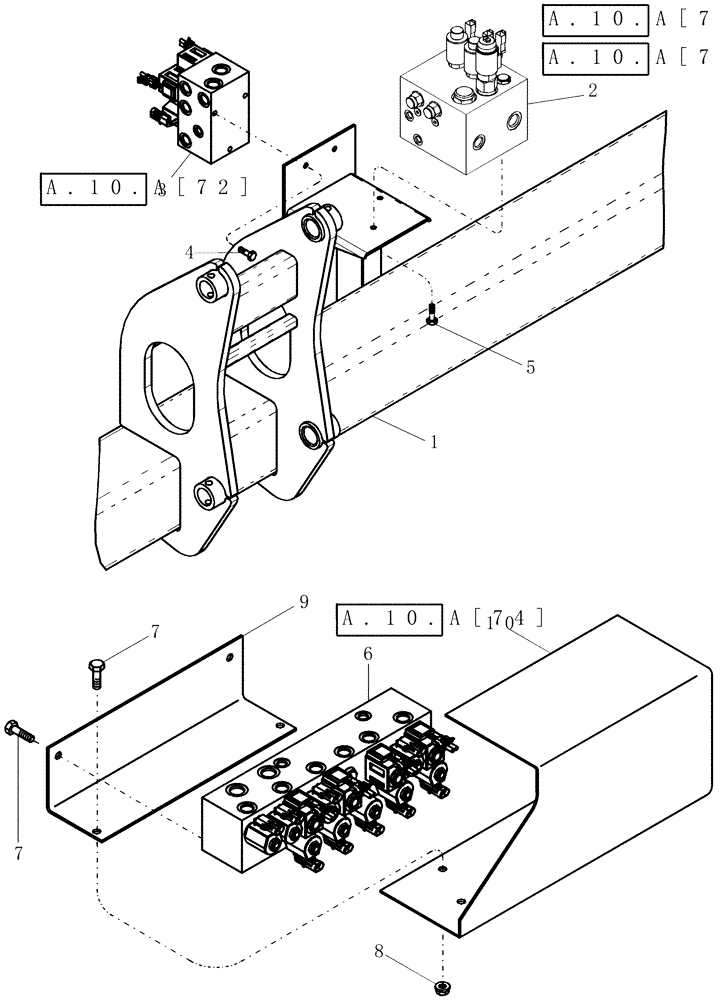

Запчасти Case IH 1200PT (A.10.A[70]) - HYDRAULIC VALVE MOUNTING (ASN CBJ025002) A - Distribution Systems

1

427727A1

TUBE

assembly center 7 x 7

1шт.

2

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

Direct Drive

1шт.

2

417538A1

CONTROL VALVE

assembly multi with relief

1шт.

PTO drive

1шт.

3

401592A1

VALVE, CONTROL

assembly marker

1шт.

Used with "Marker" Option

1шт.

4

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3шт.

Used with "No Marker" Option

1шт.

5

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3шт.

6

401591A1

VALVE, CONTROL

assembly lift and fold

1шт.

7

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

8

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

9

427823A1

BRACKET

mount valve block shield

1шт.

10

427821A1

BRACKET

shield valve block cover

1шт.
