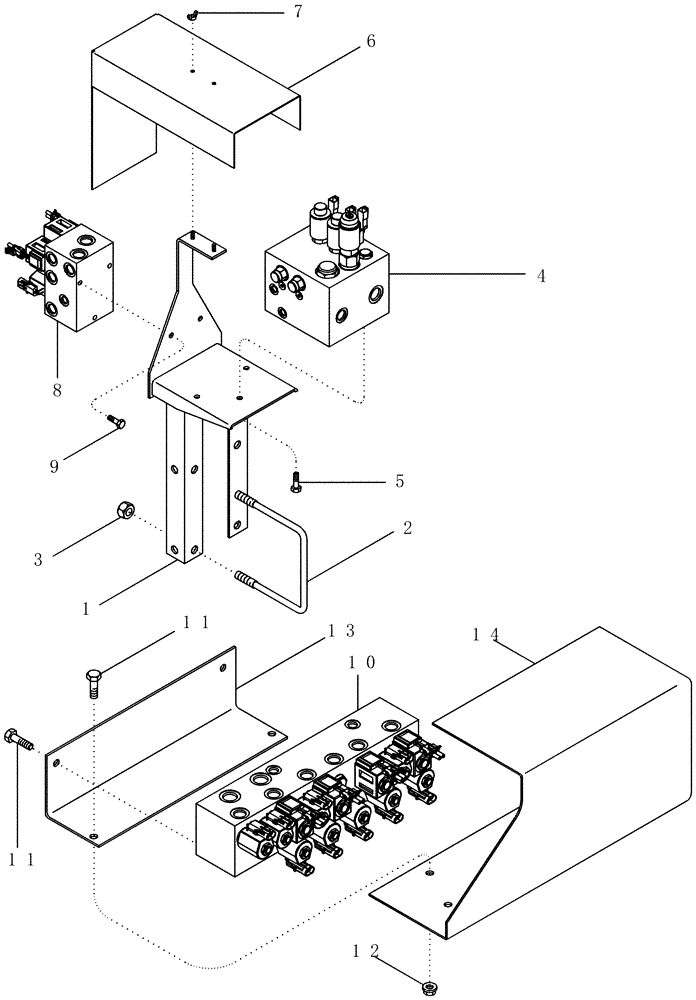

Запчасти Case IH 1200PT (A.10.A[69]) - HYDRAULIC VALVE MOUNTING (BSN CBJ025001) A - Distribution Systems

1

427773A1

BRACKET

mount valve block, Serial Range: -C0182335

1шт.

2

1250813C1

U-BOLT

us 5/8"-11 x 7" x 8 1/4", G5, 2" thread

2шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

4шт.

4

390535A2

VALVE, CONTROL

assembly multi-valve, Serial Range: -CBJ022056

1шт.

4

87439659

CONTROL VALVE

assembly, multi-valve with plugs, Start Serial: CBJ022057

1шт.

Direct Drive

1шт.

4

417538A1

CONTROL VALVE

assembly multi with relief, Start Serial: CBJ022057

1шт.

PTO drive

1шт.

5

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3шт.

6

427775A1

SHIELD

valve block, Serial Range: -C0182335

1шт.

7

86627130

WING NUT,1/4"-20

2шт.

8

401592A1

VALVE, CONTROL

assembly marker

1шт.

9

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3шт.

10

401591A1

VALVE, CONTROL

assembly lift and fold

1шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

12

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

13

427823A1

BRACKET

mount valve block shield

1шт.

14

427821A1

BRACKET

shield valve block cover

1шт.
