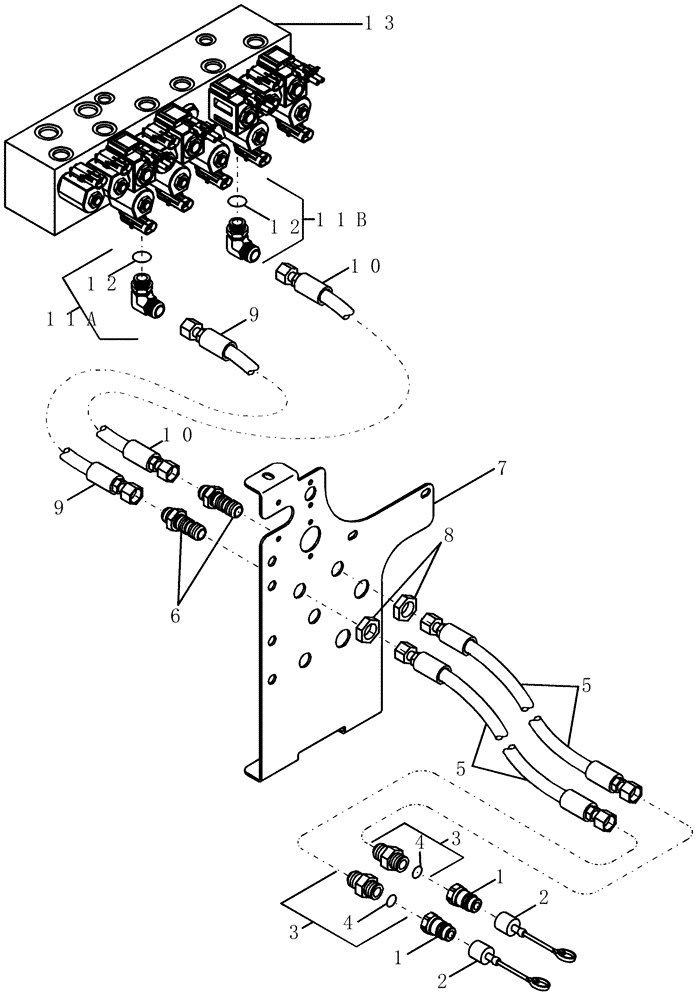

Запчасти Case IH 1200PT (A.10.A[65]) - HYDRAULIC SYSTEM - SUPPLY LINES LIFT AND PIVOT VALVE (BSN CBJ022251) A - Distribution Systems

1

1272399C2

QUICK MALE COUPLING

self sealing, 7/8" NF

2шт.

2

333721A1

CAP

female quick coupler red

2шт.

3

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

2шт.

4

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

5

410709A1

HYDRAULIC HOSE,16mm ID x 9700mm L, SAE 100R17

5/8" x 382" fl

2шт.

12 row planter

1шт.

5

410534A1

HYDRAULIC HOSE,16mm ID x 10980mm L, SAE 100R17

5/8" x 432" fl

2шт.

16 row planter

1шт.

6

9610690

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

7

427961A1

PANEL

bulkhead interface

1шт.

8

595460

BHD LOCK NUT,7/8" - 14

2шт.

9

410535A2

HYDRAULIC HOSE

5/8" x 119" fl

1шт.

10

410536A2

HYDRAULIC HOSE

5/8" x 114" fl

1шт.

11a

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

Port ID: S

1шт.

11b

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

Port ID: R

1шт.

12

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

13

401591A1

VALVE, CONTROL

assembly lift and fold

1шт.
