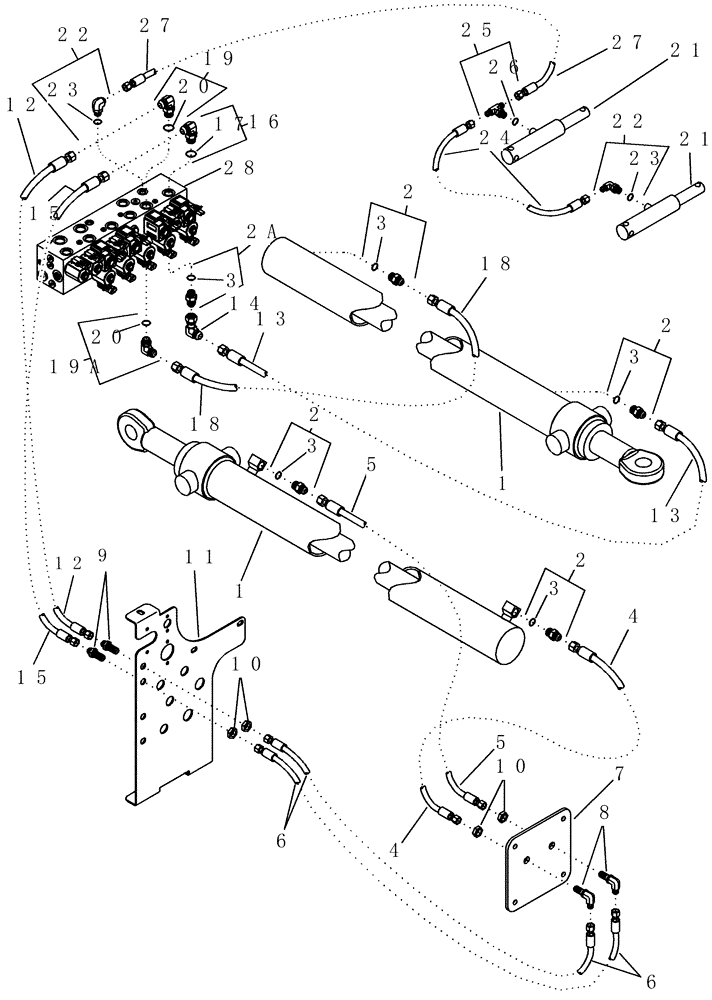

Запчасти Case IH 1200PT (A.10.A[63]) - HYDRAULIC SYSTEM - TELESCOPING TONGUE (BSN CBJ022251) A - Distribution Systems

1

395272A2

HYDRAULIC CYLINDER

telescoping tongue, Serial Range: -CBJ0018227

2шт.

1

86991010

HYDRAULIC CYLINDER

3 1/4" x 80" 3000 PSI no pins, Serial Range: CBJ0018228-CBJ0012442

2шт.

1

87439452

HYDRAULIC CYLINDER,Double Acting, 57.15mm Rod, 2032mm Stroke

tongue, Start Serial: CBJ022492

2шт.

2

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

4шт.

2a

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

Port ID: HR1

1шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5шт.

4

393704R92

HYDRAULIC HOSE

3/8" x 31" fl

1шт.

12 row planter

1шт.

4

129672C2

HYDRAULIC HOSE

3/8" x 39" fl

1шт.

16 row planter

1шт.

5

812381C2

HYDRAULIC HOSE

3/8" x 115" fl

1шт.

12 row planter

1шт.

5

1301350C2

HYDRAULIC HOSE

3/8" x 120" fl

1шт.

16 row planter

1шт.

6

1284263C1

HYDRAULIC HOSE

3/8" x 285" fl

2шт.

12 row planter

1шт.

6

193225A1

HYDRAULIC HOSE

3/8" x 325" fl

2шт.

16 row planter

1шт.

7

427881A1

PLATE

hitch

1шт.

8

253449

90 ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

9

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

10

86525

LOCK NUT,Blkhd, 9/16"-18

4шт.

11

427961A1

PANEL

bulkhead interface

1шт.

12

129671C2

HYDRAULIC HOSE

3/8" x 105" fl

1шт.

13

1284329C1

HYDRAULIC HOSE

3/8" x 205" fl

1шт.

12 row planter

1шт.

13

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

3/8" x 230" fl

1шт.

16 row planter

1шт.

14

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

15

812381C2

HYDRAULIC HOSE

3/8" x 115" fl

1шт.

16

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.

17

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

812381C2

HYDRAULIC HOSE

3/8" x 115" fl

1шт.

12 row planter

1шт.

18

1284303C1

HYDRAULIC HOSE

3/8" x 145" fl

1шт.

16 row planter

1шт.

19

297975A1

ELBOW

steel 90º 3/8" mj 1/2" mb 0.07 orifice restrictor

1шт.

Port ID: H

1шт.

19a

297975A1

ELBOW

steel 90º 3/8" mj 1/2" mb 0.07 orifice restrictor

1шт.

Port ID: H1

1шт.

20

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

21

429834A1

HYDRAULIC CYLINDER

1" x 4", Serial Range: -CBJ0018183

2шт.

21

86991777

HYDRAULIC CYLINDER

1" x 4" 2500 PSI no pins SA, Start Serial: CBJ0018184

2шт.

22

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

23

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

24

810601C1

HYDRAULIC HOSE,9.53mm ID x 4191mm L

1/4" x 165" fl

1шт.

12 row planter

1шт.

24

97647C1

HYDRAULIC HOSE,12.70 mm ID x 4318.00 mm, SAE 100 R1

1шт.

16 row, 16/31 row and 24 row planters

1шт.

25

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

1261441C1

HYDRAULIC HOSE

1/4" x 230" fl

1шт.

12 row planter

1шт.

27

193759A1

HYDRAULIC HOSE

1/4" x 285" fl

1шт.

16 row planter

1шт.

28

401591A1

VALVE, CONTROL

assembly lift and fold

1шт.
