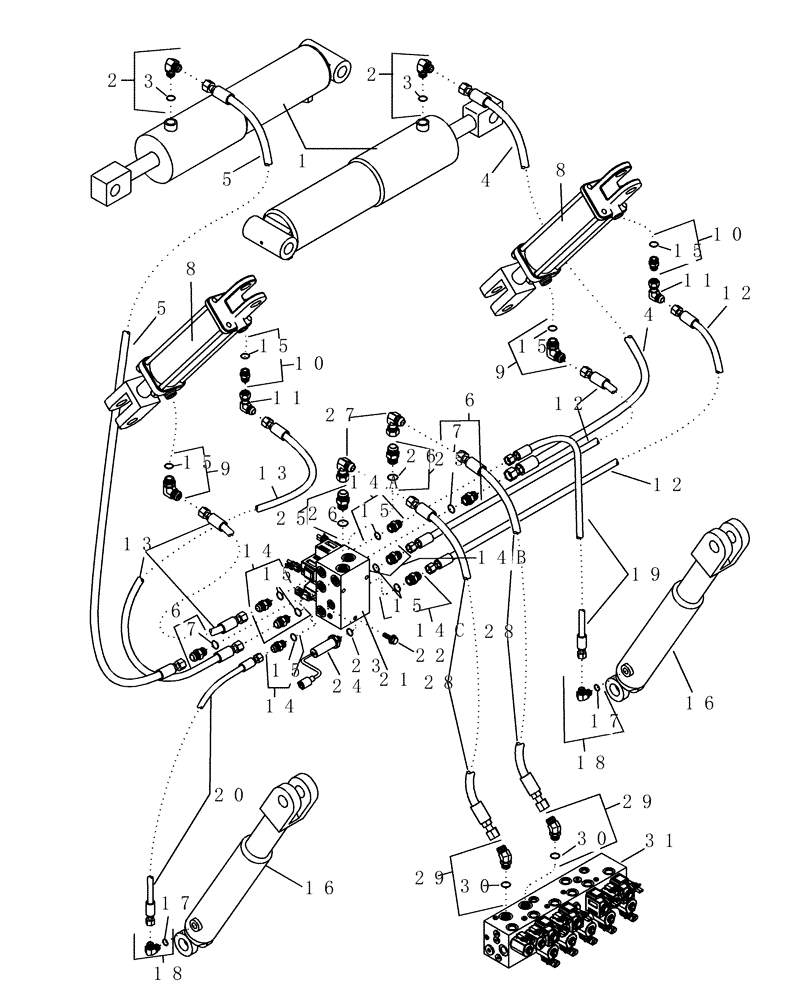

Запчасти Case IH 1200PT (A.10.A[62]) - HYDRAULIC SYSTEM - WING LIFT CYLINDER, MARKER CYLINDER AND MARKER VALVE A - Distribution Systems

1

396137A2

HYDRAULIC CYLINDER

wing lift, Serial Range: -CBJ0018184

2шт.

1

87439451R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, WING LIFT CYLINDER, MARKER CYLINDER AND MARKER VALVE, wing lift, Serial Range: -CBJ0018184 (11/01-7/08), Reman for New PN 396137A2

2шт.

1

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

1

87441307

HYDRAULIC CYLINDER

3 7/8" x 4 3/4" 3000 PSI SA, wing, Serial Range: CBJ0018184-CBJ022483

2шт.

1

87439451R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, WING LIFT CYLINDER, MARKER CYLINDER AND MARKER VALVE, 3 7/8" x 4 3/4" 3000 PSI SA, wing, Serial Range: CBJ0018184-CBJ022483 (11/01-7/08), Reman for New PN 87441307

2шт.

1

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

1

87439451

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 120.65mm Stroke

wing 3 7/8" x 4 3/4" 3000 PSI SA, Serial Range: CBJ022484-CBJ022714

2шт.

1

87439451R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, wing 3 7/8" x 4 3/4" 3000 PSI SA, Serial Range: CBJ022484-CBJ022714, WING LIFT CYLINDER, MARKER CYLINDER AND MARKER VALVE (11/01-7/08)

2шт.

1

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

1

87441307

HYDRAULIC CYLINDER

3 7/8" x 4 3/4" 3000 PSI SA, wing, Serial Range: CBJ022715-CBJ022726

2шт.

1

87439451R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, WING LIFT CYLINDER, MARKER CYLINDER AND MARKER VALVE, 3 7/8" x 4 3/4" 3000 PSI SA, wing, Serial Range: CBJ0018184-CBJ022483 (11/01-7/08), Reman for New PN 87441307

2шт.

1

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

1

87439451

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 120.65mm Stroke

wing 3 7/8" x 4 3/4" 3000 PSI SA, Start Serial: CBJ022727

2шт.

1

87439451R

REMAN-HYD CYLINDER

1200PT CASE IH PIVOT TRANSPORT ASM PLANTER, wing 3 7/8" x 4 3/4" 3000 PSI SA, Serial Range: CBJ022484-CBJ022714, WING LIFT CYLINDER, MARKER CYLINDER AND MARKER VALVE (11/01-7/08)

2шт.

1

87439451C

CORE-HYD CYLINDER

Return Number

2шт.

2

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

4

134216A1

HYDRAULIC HOSE,12.7mm ID x 4190mm L

1/2" x 165" fl

1шт.

12 row and 12/23 row planters

1шт.

4

134215A1

HYDRAULIC HOSE

1/2" x 205" fl

1шт.

16 row and 16/31 row planters

1шт.

4

91241C1

HYDRAULIC HOSE,12.70 mm ID x 5080.00 mm, SAE 100R1

1шт.

5

1301963C2

HYDRAULIC HOSE,12.7mm ID x 1270mm L

1/2" x 50" fl

1шт.

12 row and 12/23 row planters

1шт.

5

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

1шт.

16 row planter

1шт.

5

91239C1

HYDRAULIC HOSE,12.70 mm ID x 2285.00 mm, SAE 100R1

1шт.

16/31 row planter

1шт.

5

91202C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, SAE 100R1

1шт.

24 row planter

1шт.

6

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

6

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

24 row planter

1шт.

6

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

24 row planter

1шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

8

429836A1

HYDRAULIC CYLINDER

HTI 2 1/2" x 8", Serial Range: -CBJ0018184

2шт.

8

86991779

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

2 1/2" x 8", 3000 psi, no pins, Start Serial: CBJ0018184

2шт.

9

367841A1

ELBOW

steel 90º 1/2" mb x 3/8" mj 0.04 orifice restrictor

2шт.

10

1263477C3

HYD CONNECTOR

union restrictor

2шт.

11

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

12

435691A1

HYDRAULIC HOSE

3/8" x 300" fl

2шт.

12 row planter

1шт.

12

1284269C1

HYDRAULIC HOSE

3/8" x 360" fl

2шт.

16 row planter

1шт.

13

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8" x 185" fl

2шт.

13

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8" x 185" fl

2шт.

12 row planter

1шт.

13

1284292C1

HYDRAULIC HOSE

3/8" x 245" fl

2шт.

16 row planter

1шт.

14

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

3шт.

14

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

16/31 row planter

1шт.

14

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

16/31 row planter

1шт.

14

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

3шт.

24 row planter

1шт.

14a

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

Port ID: LM

1шт.

14b

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

Port ID: LR

1шт.

14c

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

1шт.

Port ID: LI

1шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

10шт.

16

414705A1

HYDRAULIC CYLINDER

2" x 8" 3000 psi without pins, Serial Range: CBJ0018184-CBJ0001934

2шт.

16

86991778

HYDRAULIC CYLINDER

2" x 8", 3000 psi, no pins, single acting, Serial Range: CBJ0001935-CBJ0018325

2шт.

16

87430675

HYDRAULIC CYLINDER,50.8mm Rod, 204.72mm Stroke

2" x 8", Start Serial: CBJ0018326

2шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

18

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

19

435691A1

HYDRAULIC HOSE

3/8" x 300" fl

1шт.

12 row planter

1шт.

19

1284269C1

HYDRAULIC HOSE

3/8" x 360" fl

1шт.

16 row planter

1шт.

20

1284255C1

HYDRAULIC HOSE,9.53mm ID x 4700mm L

3/8" x 185" fl

1шт.

12 row planter

1шт.

20

1284292C1

HYDRAULIC HOSE

3/8" x 245" fl

1шт.

16 row planter

1шт.

21

401592A1

VALVE, CONTROL

assembly marker

1шт.

22

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

4шт.

23

237-8006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 8, 90 Duro

1шт.

24

1547188C1

SWITCH

pressive inv

1шт.

25

87301330

HYD CONNECTOR,7/8" - 14 ORB x 7/8" - 14 JIC

5/8" mb x 5/8" mj

2шт.

26

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

27

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

28

410538A1

HYDRAULIC HOSE

5/8" x 94" fl

2шт.

29

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

2шт.

30

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

31

401591A1

VALVE, CONTROL

assembly lift and fold

1шт.
