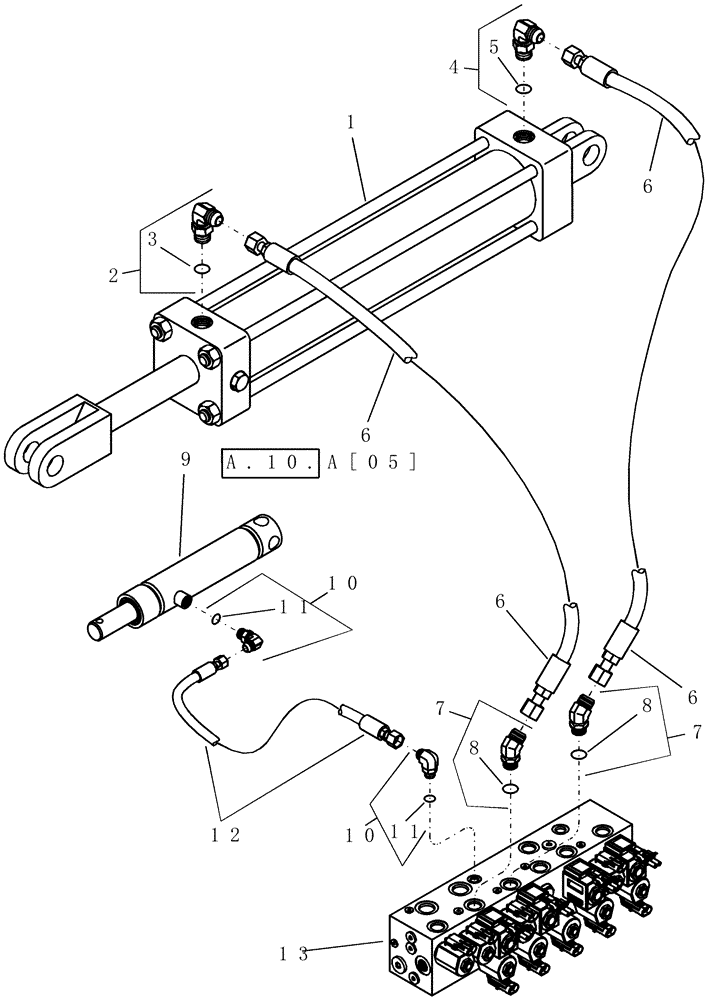

Запчасти Case IH 1200PT (A.10.A[60]) - HYDRAULIC SYSTEM - LATCH AND PIVOT CYLINDER A - Distribution Systems

1

380311A2

HYDRAULIC CYLINDER

4x18 hti, Serial Range: -CBJ0018183

1шт.

1

86991780

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 457.2mm Stroke

4" x 18" 3000 PSI no pins, Start Serial: CBJ0018184

1шт.

2

87329788

90 ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.

3

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

367841A1

ELBOW

steel 90º 1/2" mb x 3/8" mj 0.04 orifice restrictor

1шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

3/8" x 95" fl

2шт.

7

84313

ELBOW,45 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

2шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

9

429834A1

HYDRAULIC CYLINDER

1" x 4", Serial Range: -CBJ0018183

1шт.

9

86991777

HYDRAULIC CYLINDER

1" x 4" 2500 PSI no pins SA, Start Serial: CBJ0018184

1шт.

10

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

12

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

1/4" x 105" fl

1шт.

13

401591A1

VALVE, CONTROL

assembly lift and fold

1шт.
