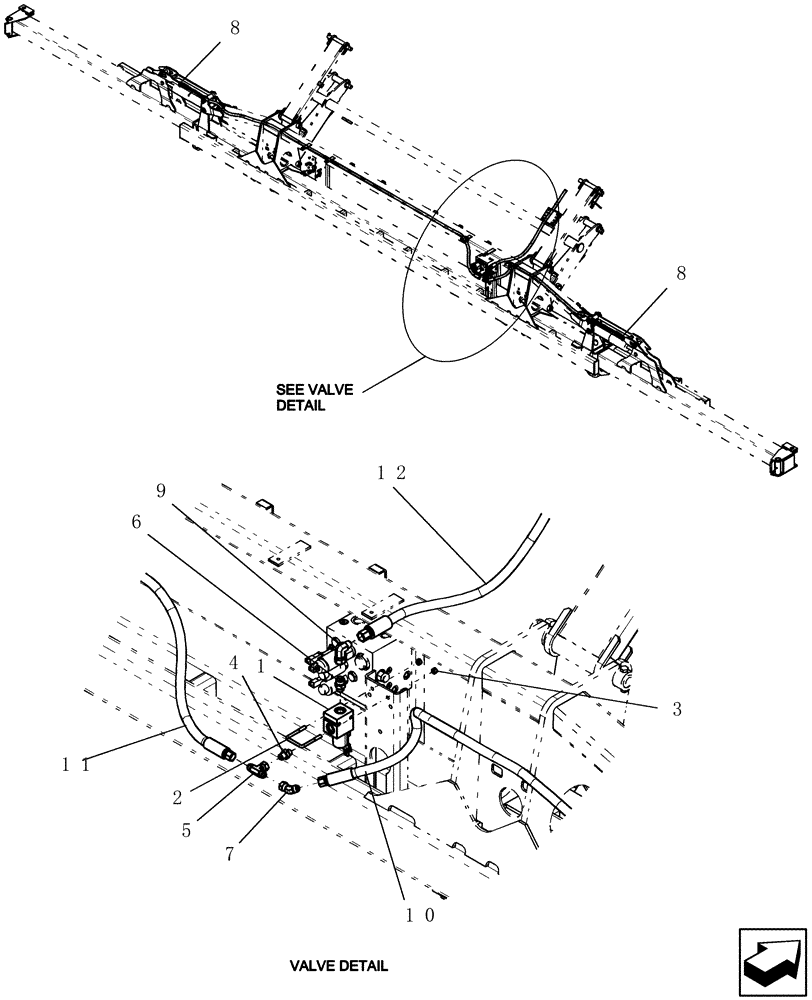

Запчасти Case IH 1200PT (A.10.A[55]) - LAYOUT NO MARKER OPTION VALVE MOUNT - 12/23 ROW & 16/31 ROW A - Distribution Systems

1

87582248

VALVE

bi-directional solenoid

1шт.

2

9840

U-BOLT

us 5/16"-18 x 2 1/16" w x 2 3/4" d thread G5

1шт.

3

86050277

NUT,5/16"-18, GB

2шт.

4

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

5

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

6

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

7

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

8

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

9

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

10

91239C1

HYDRAULIC HOSE,12.70 mm ID x 2285.00 mm, SAE 100R1

1шт.

16/31 row planter

1шт.

10

90874C1

HYDRAULIC HOSE

1/2" x 55" fl

1шт.

12/23 row planter

1шт.

11

134215A1

HYDRAULIC HOSE

1/2" x 205" fl

1шт.

16/31 row planter

1шт.

11

91204C1

HYDRAULIC HOSE,12.7mm ID x 4320mm L

1шт.

12/23 row planter

1шт.

12

410538A1

HYDRAULIC HOSE

5/8" x 94" fl

1шт.
