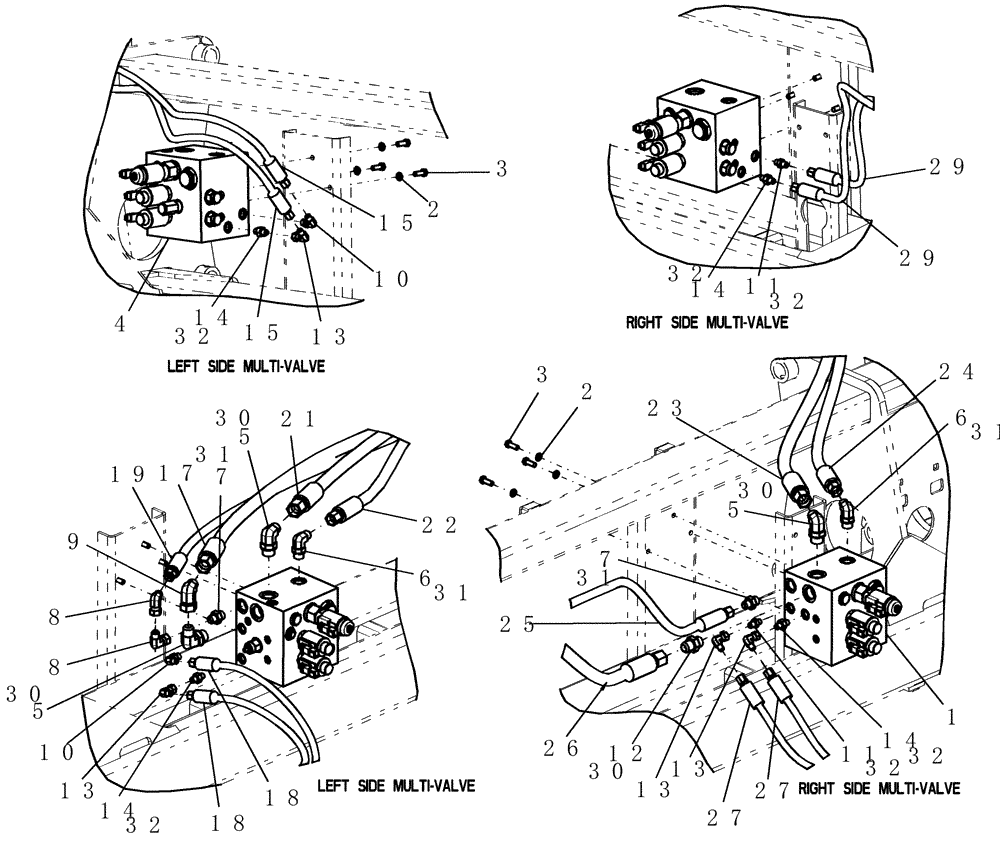

Запчасти Case IH 1200PT (A.10.A[49]) - LAYOUT MULTI-VALVES MOUNTING 16/31 ROW (BSN CBJ026002) A - Distribution Systems

1

390535A2

VALVE, CONTROL

assembly multi-valve, Serial Range: -CBJ022251

1шт.

1

87439659

CONTROL VALVE

assembly, multi-valve with plugs, Start Serial: CBJ022252

1шт.

2

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

4

417538A1

CONTROL VALVE

assembly multi with relief

1шт.

PTO drive

1шт.

4

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

Direct Drive

1шт.

5

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

3шт.

Includes O-Ring

1шт.

6

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

Includes O-Ring

1шт.

7

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

Includes O-Ring

1шт.

8

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

9

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

10

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

11

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

Includes O-Ring

1шт.

12

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

Includes O-Ring

1шт.

13

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

4шт.

14

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

4шт.

Includes O-Ring

1шт.

15

129671C2

HYDRAULIC HOSE

3/8" x 105" fl

2шт.

17

410544A1

HYDRAULIC HOSE

3/4" x 65" fl

1шт.

18

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

2шт.

19

1301966C2

HYDRAULIC HOSE

1/2" x 70" fl

1шт.

21

451580A1

HYDRAULIC HOSE

3/4" x 300" fl, Serial Range: -CBJ022251

1шт.

21

87454225

HYDRAULIC HOSE

3/4" x 175" fl, Start Serial: CBJ022252

1шт.

22

451579A1

HYDRAULIC HOSE

5/8" x 300" fl, Serial Range: -CBJ022251

1шт.

22

87454223

HYDRAULIC HOSE

5/8" x 175" fl, Start Serial: CBJ022252

1шт.

23

87424846

HYDRAULIC HOSE

3/4" x 182" fl, Serial Range: -CBJ022251

1шт.

23

87448899

HYDRAULIC HOSE,19mm ID x 14480mm L, SAE 100R17

3/4" x 570" fl, Start Serial: CBJ022252

1шт.

24

87424845

HYDRAULIC HOSE

5/8" x 180" fl, Serial Range: -CBJ022251

1шт.

25

87448896

HYDRAULIC HOSE,16mm ID x 14480mm L, SAE 100R17

5/8" x 570" fl, Start Serial: CBJ022252

1шт.

25

1301966C2

HYDRAULIC HOSE

1/2" x 70" fl

1шт.

26

87424861

HYDRAULIC HOSE

3/4" x 62" fl

1шт.

27

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

3/8" x 55" fl

2шт.

29

812381C2

HYDRAULIC HOSE

3/8" x 115" fl

2шт.

30

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
