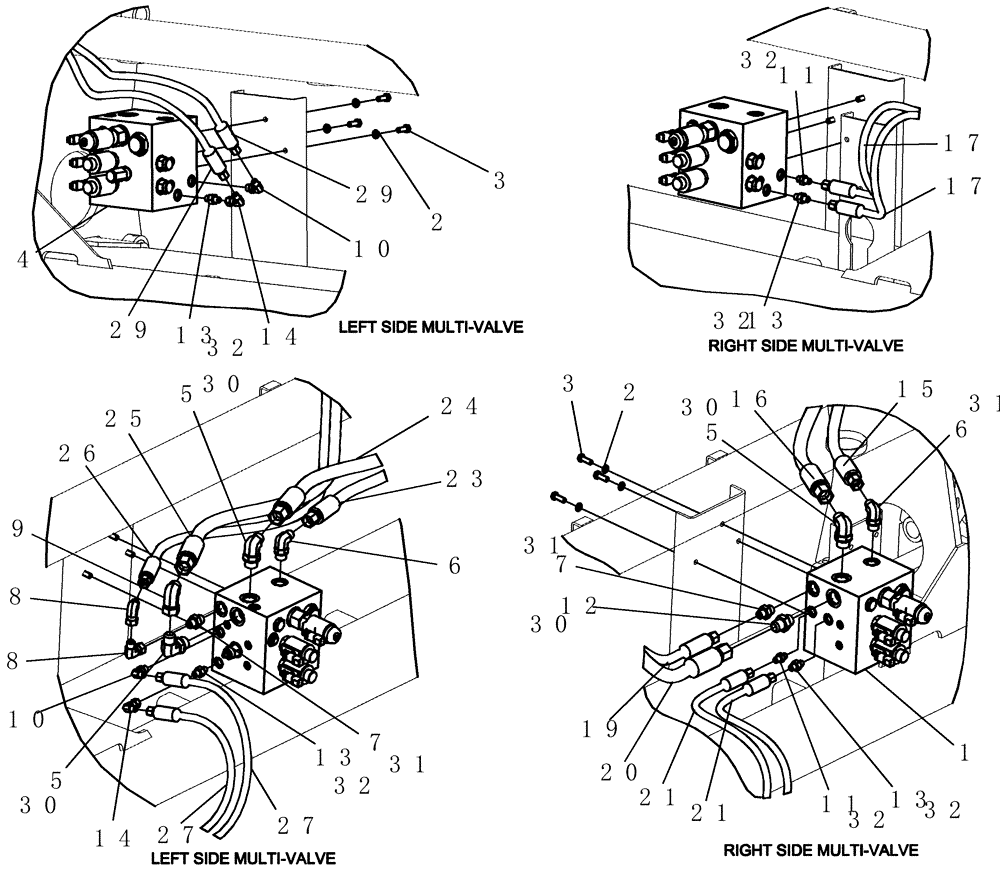

Запчасти Case IH 1200PT (A.10.A[46]) - LAYOUT MULTI-VALVES MOUNTING 12/23 ROW (BSN CBJ026002) A - Distribution Systems

1

390535A2

VALVE, CONTROL

assembly multi-valve, Serial Range: -CBJ022251

1шт.

1

87439659

CONTROL VALVE

assembly, multi-valve with plugs, Start Serial: CBJ022252

1шт.

2

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

4

417538A1

CONTROL VALVE

assembly multi with relief

1шт.

PTO drive

1шт.

4

87439659

CONTROL VALVE

assembly, multi-valve with plugs

1шт.

Direct Drive

1шт.

5

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

3шт.

Includes O-Ring

1шт.

6

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

2шт.

Includes O-Ring

1шт.

7

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

2шт.

Includes O-Ring

1шт.

8

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

9

219603

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12, 37 Degree Fem Sw

1шт.

10

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

11

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

Includes O-Ring

1шт.

12

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

Includes O-Ring

1шт.

13

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

4шт.

Includes O-Ring

1шт.

14

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

2шт.

15

87424845

HYDRAULIC HOSE

5/8" x 180" fl, Serial Range: -CBJ022251

1шт.

15

87454632

HYDRAULIC HOSE

5/8" x 525" fl, Start Serial: CBJ022252

1шт.

16

87424846

HYDRAULIC HOSE

3/4" x 182" fl, Serial Range: -CBJ022251

1шт.

16

87454635

HYDRAULIC HOSE

3/4" x 520" fl, Start Serial: CBJ022252

1шт.

17

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

2шт.

19

1301966C2

HYDRAULIC HOSE

1/2" x 70" fl

1шт.

20

87424861

HYDRAULIC HOSE

3/4" x 62" fl

1шт.

21

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

2шт.

23

451579A1

HYDRAULIC HOSE

5/8" x 300" fl, Serial Range: -CBJ022251

1шт.

23

87454633

HYDRAULIC HOSE

5/8" x 190" fl, Start Serial: CBJ022252

1шт.

24

451580A1

HYDRAULIC HOSE

3/4" x 300" fl, Serial Range: -CBJ022251

1шт.

24

87454636

HYDRAULIC HOSE

3/4" x 188" fl, Start Serial: CBJ022252

1шт.

25

410544A1

HYDRAULIC HOSE

3/4" x 65" fl

1шт.

26

1301966C2

HYDRAULIC HOSE

1/2" x 70" fl

1шт.

27

1259625C1

HYDRAULIC HOSE,9.50 mm ID x 840.00 mm, SAE 100R1

2шт.

29

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

2шт.

30

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

32

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
